Modular Stacking Beacons

by D.G. Controls

A range of modular stacking (click-together) beacon lamps with high environmental protection to IP65 standard.  These products are ideally suited to internal or external multi-status signalling applications.

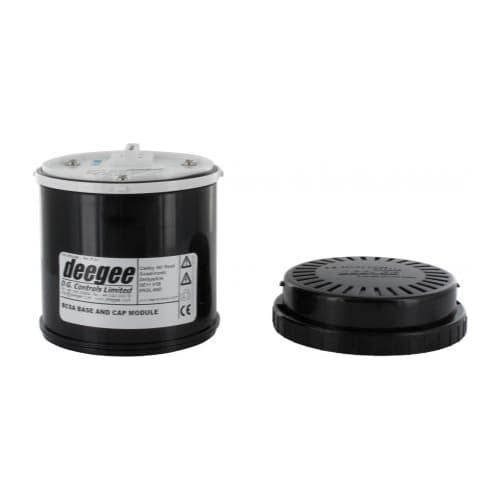

Each stack requires one BCSA Module (base and cap).

Key Features

  • High-grade engineering
  • UV-stabilized polycarbonate
  • Devices are totally modular and can be used as single indicators or multi-stacked up to 6 modules high

Available Combinations

Voltages 12, 24, 115, 230
Lamp Types Filament, Xenon (strobe), LED
Functions Static, Flashing, Rotating
Temperature Range -40°C, +55°C (Filament -20°C)

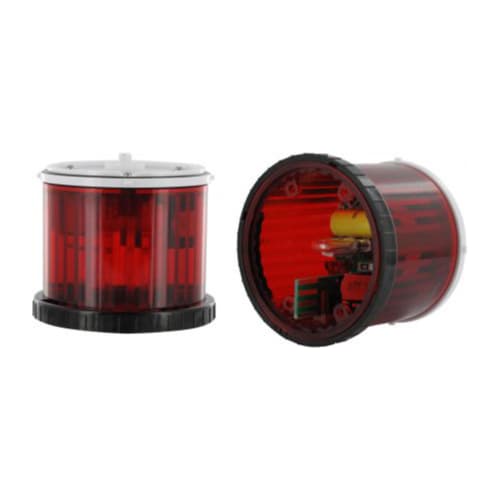

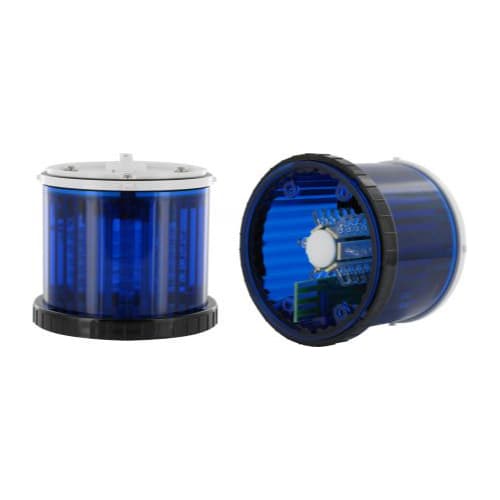

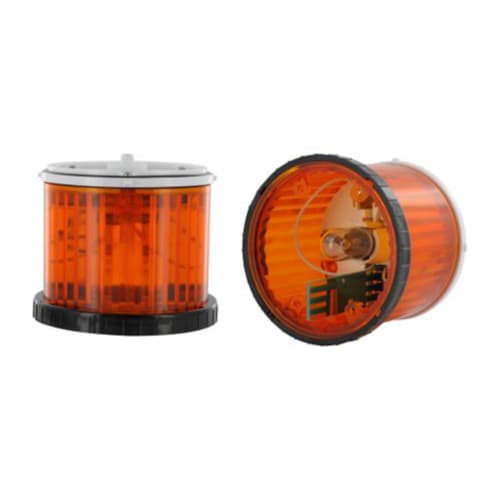

Colours Red, Amber, Green, Blue, Clear, Purple, Yellow

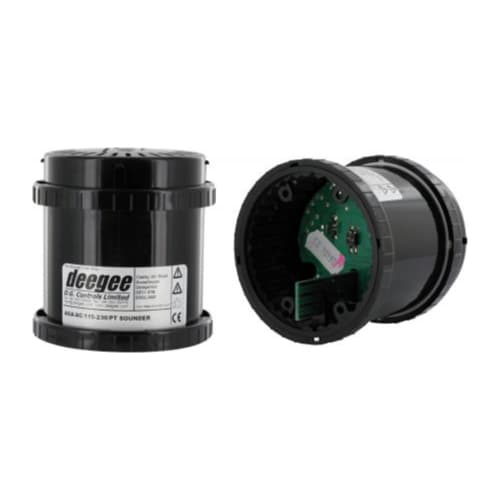

Optional Modules Audible Module
Spacer Module

Standard Features

Size 78mm (3.07in) width
Base: 73mm (2.87 in) high
Colour Modules: 69mm (2.72in) high
Cap: 20mm (0.79in) high
Max high (6 colour): 507mm (19.96in) high
Rating IP65 (Nema 4X)
