Product Description
Description

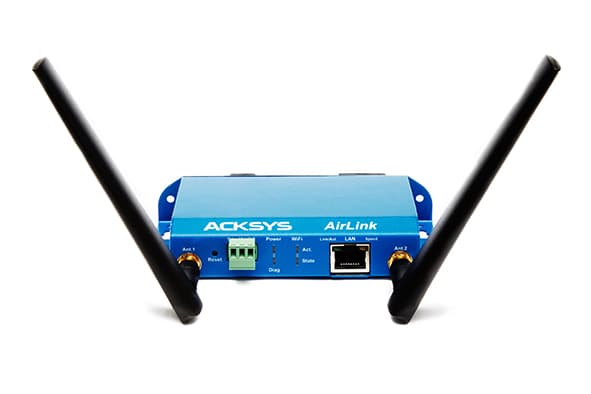

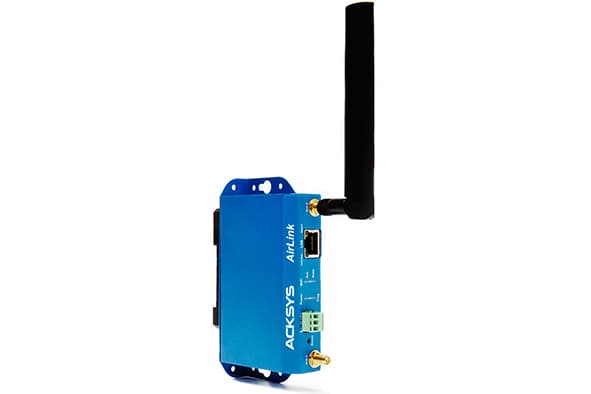

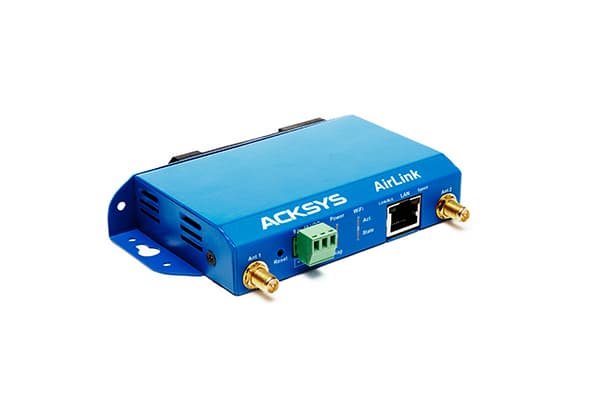

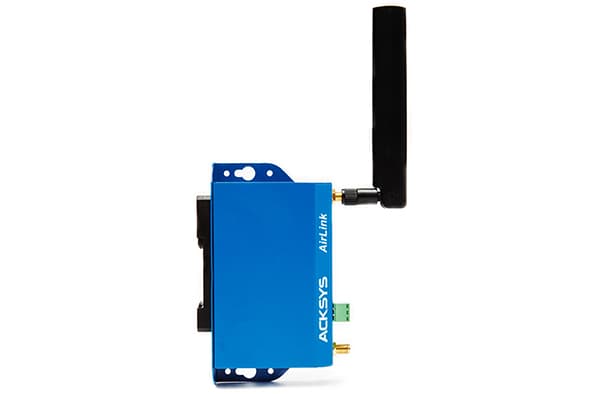

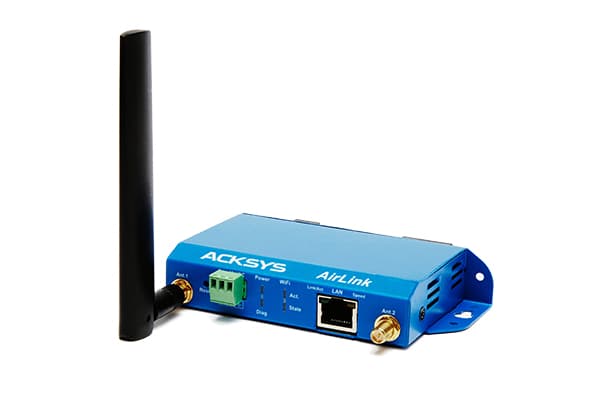

AirLink is an all-in-one multifunction product: access point, client, repeater, router & Mesh. It supports any type of Ethernet protocol such as Modbus/TCP, EtherNet/IP, Safe Ethernet, PROFINET. Compliant with IEEE 802.11a/b/g/n WiFi standards (2.4 & 5 GHz), it offers up to 300 Mbps radio data rate. AirLink integrates the latest security standards (WPA2-Enterprise (Radius), DoS, Firewall) as well as routing and filtering functions facilitating mass deployments (e.g. machine manufacturers, AGVs, buses). AirLink is a WiFi device designed for industrial, building & factory automation and mobile applications.
- All-in-one: AP/client/repeater/Mesh/router
- WiFi 802.11a/b/g/n (MIMO 2T2R), radio data rate up to 300 Mbps, 2.4/5 GHz
- Advanced security functions
- Easy to configure: web browser, SNMP V3, WaveManager
- Operating System: WaveOS
- DC power supply input (+9VDC to +48VDC) & PoE 802.3af (from model V2)

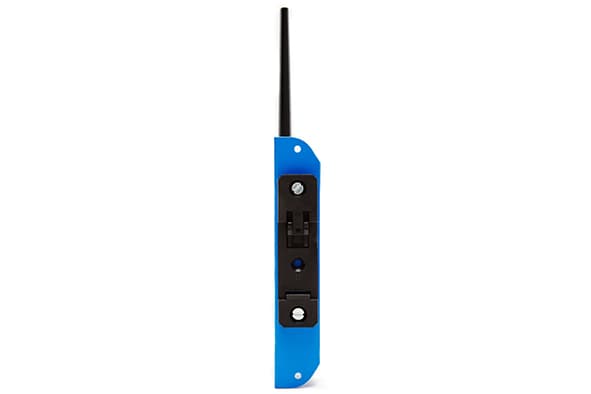

- Compact case, wall or DIN Rail mounting
- Multichannel fast roaming (in client mode)
Features
Features
Compact & Practical
A small footprint, wall or DIN rail mounting options and a wide range of power supply make it extremely easy to integrate into electrical cabinets or in tight spaces and thus ideal for machine manufacturers, OEM.
Mobility
With fast roaming performances (< 30 ms) and high resilience to shocks/vibrations, it fits perfectly in AGVs, vehicles (buses).
Reinforcement of the Coverage
It has 2 antennas to work in diversity or in MIMO and thus reinforcing the WiFi coverage and the reliability of your indoor radio communications (IIoT, MtoM, remote access & display).
Specifications
- Ethernet Interface
1-port Gigabit Ethernet 10/100/1000 Base TX auto-sensing, auto MDI/MDIX cross-over, RJ45 Ethernet interface
- WiFi Interface
1 radio IEEE 802.11a/b/g/n, MIMO 2T2R, 2.4 / 5 GHz, ANI (Adaptive Noise Immunity)
- WiFi Radio Data Rate
802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps
802.11n: MCS0-7, 2 streams (6.5 to 300 Mbps)
- Operating Frequencies
ISM: 2.4-2.483 GHz (up to 14 channels)
UNII: 5.15-5.25 GHz (up to 4 channels)
UNII-2: 5.25-5.35 GHz (up to 4 channels)
UNII-2 ext: 5.470-5.725 GHz (up to 11 channels)
UNII-3: 5.725-5.825 GHz (up to 4 channels)
Supports DFS and TPC
- Output Power
2.4 GHz: 23.5 dBm (aggregate)
5 GHz: 21 dBm (aggregate)
- Sensitivity Maximum
2.4 GHz: -94 dBm
5 GHz: -96 dBm
- Radio connectors
2 x RP-SMA
- Security
Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3, client isolation in AP mode
- WiFi Modes
Access point, client, MESH (IEEE 802.11s), infrastructure, AD-HOC, fast roaming (less than 30 ms), WMM QoS
- Ethernet Networking
Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay
- Ethernet Routing
Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router
- Administration
http, https, SNMP agent (V1, V2C, V3), WaveManager administration software
- LEDs Signaling
Radios: activity - status
Ethernet: 10/100/1000 link - activity
Power: on-off (x2)
- Power Supply
+9VDC to +48VDC, 3-pin Phoenix connector & PoE Powered Device 802.3af (from model V2)
- Consumption
IDLE mode: 1.7 W
Maximum average: 5.8 W
Recommended power supply: 7 W
- Dimensions
Compact case L: 103 x l: 67 x h: 24 mm
- Weight
225g
- Standards and Certifications
CE (RED)
Safety: EN 62368-1:2014+A11, EN62311
EMC: EN301-489-1, EN301-489-17
Radio: EN 300 328 2.1.1 (2.4 GHz), EN 301 893 2.1.1 (5 GHz, DFS)
FCC
Radio: FCC ID Z9W-RMB
Environmental
Shocks & vibrations: EN 61373 (CAT 1 CLASS B)
- Environment
IP30
Operating temperature: -20°C to +60°C
Storage: -40°C to +85°C
Humidity: 0% to 99% (non-condensing)
