Product Description
AirXroad
Industrial WiFi Access Point11n WiFi access point, Ethernet bridge, repeater & MESH point for automotive & heavy duty applications
AirXroad
Industrial WiFi Access Point11n WiFi access point, Ethernet bridge, repeater & MESH point for automotive & heavy duty applications
Description

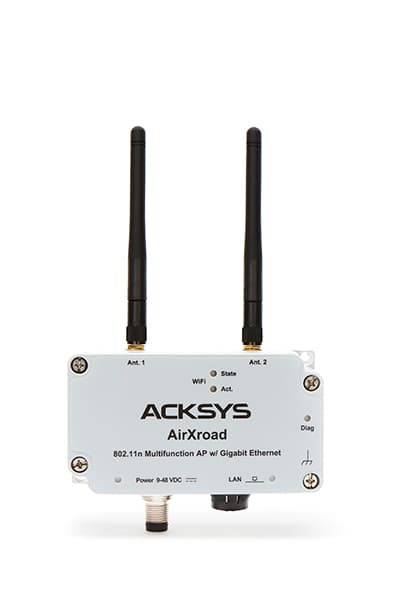

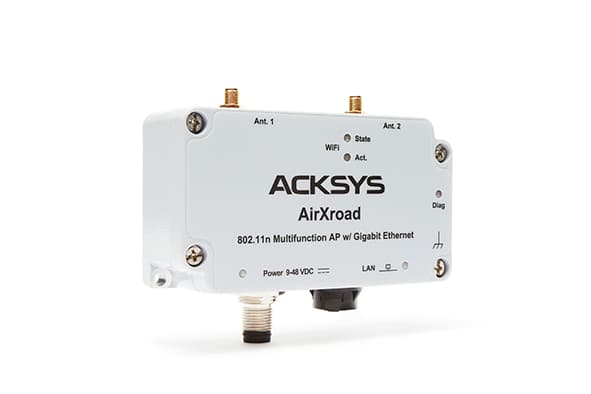

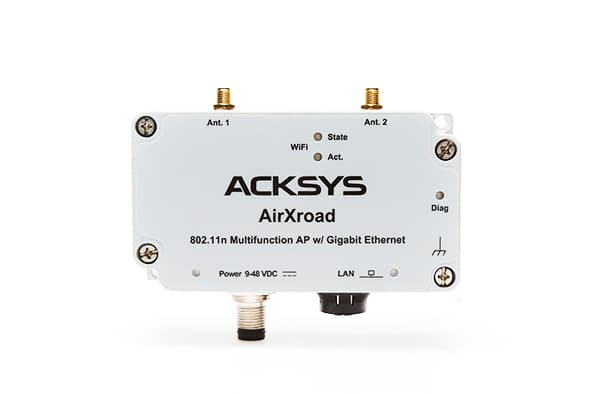

AirXroad is a compact rugged enclosure equipment, ideally designed for applications in road transportation, depots, warehouses, agriculture, manufacturing floors, docks, distribution centers, shipyards and lumberyards… it can be mounted in trucks, city buses, forklifts, trailers, tractors or cranes or in any rotating machinery, for material handling, real-time information transmission, and inventory management.
The device relies on the multi-streams MIMO technology that contributes to an expanded coverage, higher data throughput and increased radio link reliability.
It fulfills the most severe requirements in terms of operating environment: from -40°C to +70°C, shock and vibration proof, protection against dust and water projections (IP66).
AirXroad is E-marked ECE R10 (EMC standard for electronic equipment installed aboard vehicle), and can thus be installed in full safety aboard of all on-road equipment.
- All-in-one : AP/client/repeater/Mesh/router
- WiFi 802.11a/b/g/n (MIMO 2T2R), radio data rate up to 300 Mbps, 2.4/5 GHz
- Easy and secure configuration: web browser (HTTPS), SNMPV3, WaveManager
- Operating System : WaveOS
- DC power supply input (+9VDC to +48VDC) & PoE 802.3af
- Multichannel fast roaming (in client mode)
- Shock & vibration proof rugged aluminium enclosure IP66 seal rating
- E-marking (ECE R10 certification for integration in onboard vehicles)
Specifications
- Ethernet Interface
1-port Gigabit Ethernet 10/100/1000 Base TX auto-sensing, auto MDI/MDIX cross-over, 8 pts X-coded M12 connector
- WiFi Interface
1 radio IEEE 802.11a/b/g/n, MIMO 2T2R, 2.4 / 5 GHz
- WiFi Radio Data Rate
802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps
802.11n: MCS0-7, 2 streams (6.5 to 300 Mbps)
- Operating Frequencies
ISM: 2.4-2.483 GHz (up to 14 channels)
UNII: 5.15-5.25 GHz (up to 4 channels)
UNII-2: 5.25-5.35 GHz (up to 4 channels)
UNII-2 ext: 5.470-5.725 GHz (up to 11 channels)
UNII-3: 5.725-5.825 GHz (up to 4 channels)
Supports DFS and TPC
- Output Power
2.4 GHz: 23.5 dBm (aggregate)
5 GHz: 21 dBm (aggregate)
- FR Sensitivity
Receiver: -92 dBm for 802.11 b/g/n and -96 dBm for 802.11a/n

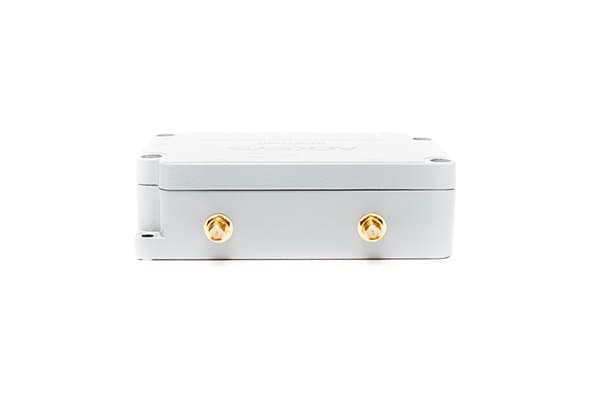

- Antennas Connections
2 RP-SMA male connectors
- Security
Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3
- WiFi Modes
Access point, client, MESH (IEEE 802.11s), infrastructure, AD-HOC, fast roaming (less than 30 ms), WMM QoS
- Ethernet Networking
Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay
- Ethernet Routing
Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router
- Administration
http, https, SNMP agent (V1, V2C, V3), ACKSYS WaveManager & WaveViewer administration softwares
- LEDs Signaling
Radio: quality, activity and status
Ethernet: link 10/100/1000 activity
Power: on-off
- Power Supply

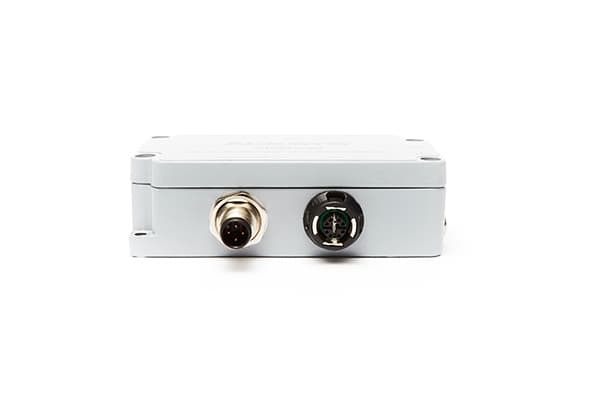

+9VDC to +48VDC ULTRA-LOCK M12 4-point connector & PoE 802.3af
- Consumption
IDLE mode: 1.7 W
Maximum average: 5.8 W
Recommended power supply: 7 W
- Dimensions
115 mm x 64 mm x 34 mm
- Weight
332 g
- Standards and Certifications
CE (RED)
Safety: EN 62368-1:2014+A11, EN62311
EMC: EN301-489-1, EN301-489-17
Radio: EN 300 328 2.1.1 (2.4 GHz), EN 301 893 2.1.1 (5 GHz, DFS)
FCC
Radio: FCC ID Z9W-RMB
IC
Radio: IC ID 114688A RMB
E-marking
ECE R10
Environmental
Shocks & vibrations: EN 61373 (CAT 1 CLASS B)
Climatic: EN60068-2 [-1, -2, -30]
- Environment
IP66
Operating temperature: -40°C to +70°C
Storage: -40°C à +85°C
Relative humidity: 0% to 99% (non-condensing)
