Product Description
PMXNOW0300
Industrial WiFi Access PointWiFi access point, 3-port Ethernet bridge & repeater (WDS)
PMXNOW0300
Industrial WiFi Access PointWiFi access point, 3-port Ethernet bridge & repeater (WDS)
Description

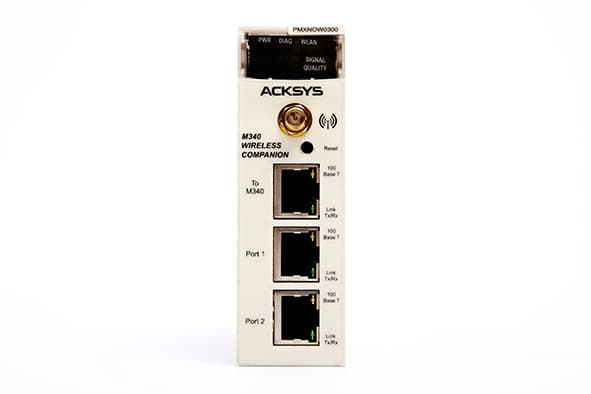

PMXNOW0300 is a single slot backplane compatible module that allows the M340/M580 processors to interface easily with the WiFi wireless network in order to communicate with devices located remotely.
It can be used either as access point to create the wireless network infrastructure, bridge to connect network equipments or even as repeater to extend the wireless network coverage.
The module offers point to point or point to multipoint communication schemes and supports all Ethernet based protocols including MODBUS/TCP & Ethernet/IP.
Thanks to its built-in WEB interface, the setup of the module is easily achieved using any web browser, module also offers SNMP and NDM (Network Device Manager) configuration and administration.

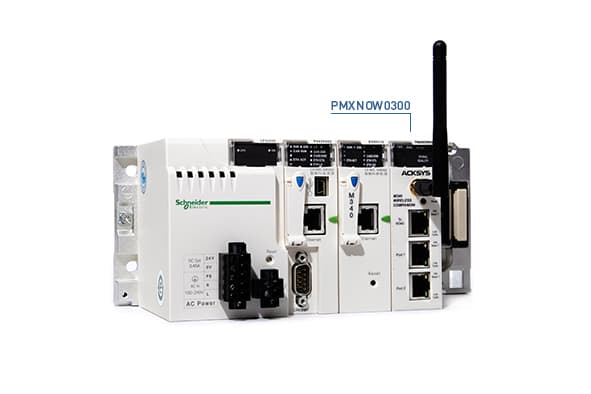

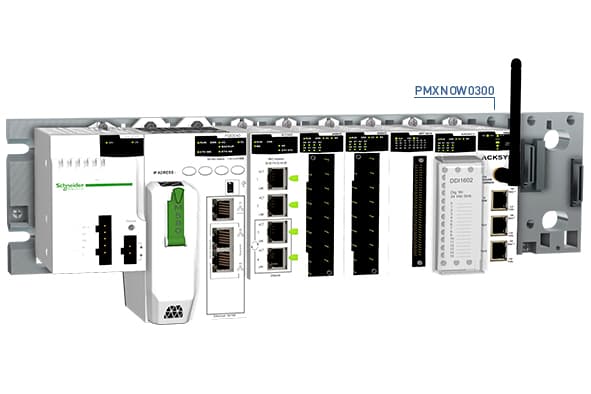

- Direct connection to M340/M580, single slot backplane compatible module
- Hot swappable module during operation for simplified maintenance
- WiFi IEEE 802.11 a/b/g (2.4 / 5 / 5.4 GHz), up to 108 Mbps
- Up to 5 Km range with external antenna, 300m LOS with standard antenna
- Security: WEP, WPA-PSK, WPA2-PSK & IEEE 802.1X RADIUS
- Web based configuration, SNMP administration
- 3-port auto-sensing 10/100 Base TX, auto MDI-MDIX network interface
Specifications
- Ethernet Link
3-port Ethernet 10/100 auto-sensing, plug & play mode & auto MDI/MDIX cross-over One port is reserved for the M340/M580 CPU or M340/M580 NOE connection. When connected to the M340/M580 Ethernet port, PMXNOW0300 ports are considered as “Slave”. If connected to the M340/M580 NOE Ethernet port instead, PMXNOW0300 ports are considered as “Master”, distributed I/O operation is then fully supported (I/O Scanner).
- WiFi Network
Compliant to the IEEE 802.11a/b/g/h 2.4 / 5 GHz standards, multi-country Roaming support (IEEE 802.11d); Dynamic Frequency Selection (DFS) support provides flexible selection of best frequency to allow mobility among existing networks; "ClearVoice" band provides non-overlapping channels for fast data transmission; Transmission Power Control (TPC) offers flexibility to adjust RF output power.
- Data Rate
Up to 108 Mbps (Super AG mode)
- Channels
2.4 GHz (802.11b/g): 14 channels
5 GHz (801.11a/h): 24 channels
- Output Power
Transmitter +20 dBm (100 mW) with Transmit Power Control (TPC)
- Sensitivity
Receiver -92 dBm for IEEE 802.11 a/g and -95 dBm for IEEE 802.11b
- Antenna

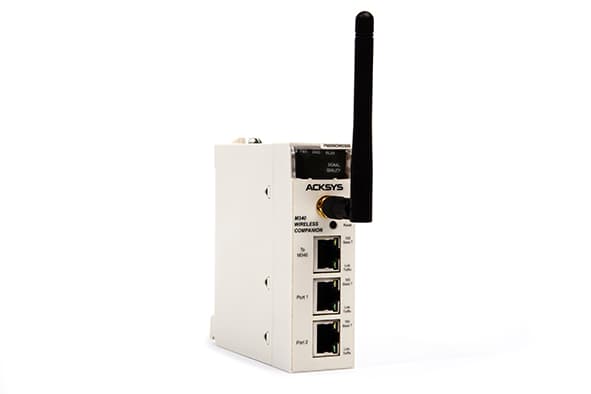

2dBi 2.4 & 5 GHz antenna, RP-SMA connector
- Modulation
OFDM: BPSK, QPSK, 16QAM, 64QAM and DSSS: DBPSK, DQPSK, CCK)
- Security
64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.11x (RADIUS authenticator & supplicant), MAC addresses filtering, SSID broadcast control
- Modes
Access point to build a WiFi network infrastructure, Bridge to connect any Ethernet, MODBUS/TCP or Ethernet/IP equipments to this network, repeater (WDS), infrastructure, AD-HOC, bridge router & fast roaming (less than 50 ms) modes are supported
- Administration
Built-in web interface using any web browser (Chrome, Firefox, etc.), SNMP agent, ACKSYS NDM
- Signaling
LEDs signaling for LAN, WLAN network activity, 10/100 mode and RF level
- Power Supply
Powered from M340/M580 +24VDC backplane
- Consumption
3.5 W typical power consumption
- Hot Swap
Module is hot swappable during operation for simplified maintenance
- Dimensions
Small sized enclosure L: 97 x W: 32 x H: 104 mm
- Weight
200 g
- Environment
Operating temperature: -20°C to +70°C (HR 5-95% non-condensing)
Storage: -40°C to +80°C
