Product Description
RailBox
Industrial WiFi Access PointRugged dual 802.11ac (WiFi 5) WiFi access point, client & repeater for railways
RailBox
Industrial WiFi Access PointRugged dual 802.11ac (WiFi 5) WiFi access point, client & repeater for railways
Description

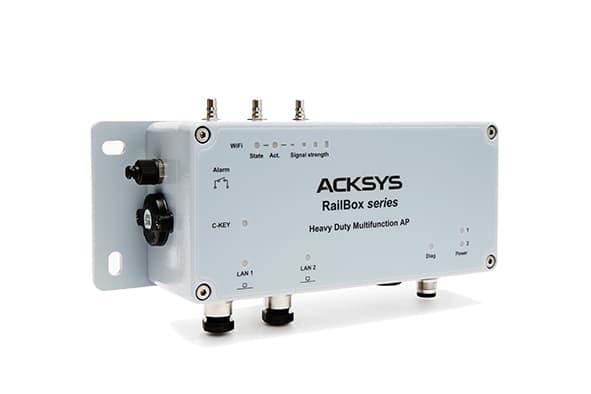

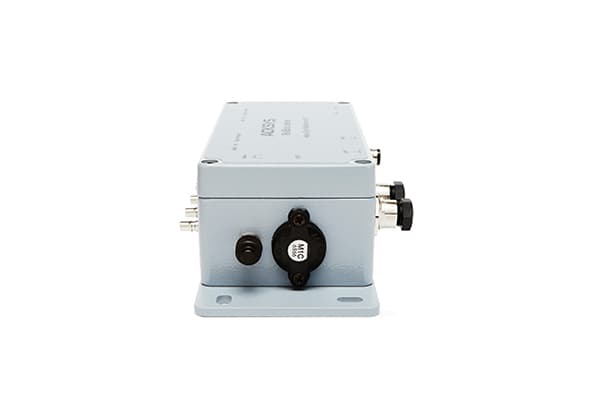

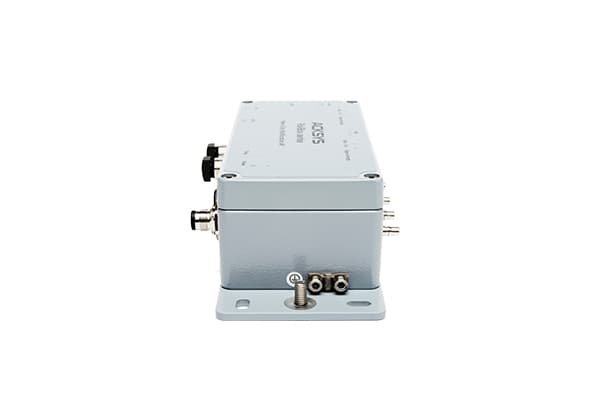

RailBox is a rugged device designed for railway and light rail applications. It can be mounted in trains, subways, trams or in any equipment that requires robustness and high bandwidth for innovative services on the move.
RailBox can be implemented by system integrators and rail vehicle manufacturers who are seeking to establish reliable, efficient and agile network for:
- Uninterrupted train-to-trackside communications (CBTC, CCTV, VoIP, preventive maintenance, PIS, etc.)
- Train and carriage coupling to establish an end-to-end Ethernet and IP backbone
- Passenger services like onboard WiFi, videostreaming, entertainment, infotainment, etc.
The device relies on the multi-streams MIMO technology that contributes to an expanded coverage, higher data throughput and increased radio link reliability.
It fulfills the most severe requirements in terms of operating environment: from -25°C to +70°C (extended : -40°C to +70°C), shock and vibration proof, protection against dust and water projections (IP66).
- Single or dual radio 802.11a/b/g/n/ac (MIMO 3T3R or MU-MIMO 4T4R), up to 1.73 Gbps
- MESH, WMM QoS, multiple SSID and centralized RADIUS security supported
- WaveManager centralized management software
- Dual insulated redundant power supply input 24 to 110 VDC (EN50155 nominal) or 12 to 36 VDC or PoE+
- Rugged aluminum enclosure, IP66 seal rating, industrial T° grade, shock & vibration proof
Specifications
- Ethernet Interface
2-port Gigabit Ethernet 10/100/1000 auto-sensing
2 Gbps link aggregation
Water and vibration proof rapid connect 8-point M12 X-coded connectors (CAT-6A) plug & play mode & auto MDI/MDIX cross-over
Optional Ethernet bypass that redirects the network traffic in case of device or power supply failure (for daisy chain topologies)
- WiFi Interface
RailBox
1 or 2 radios IEEE 802.11a/b/g/n or IEEE 802.11a/b/g/n/ac
MIMO 3T3R
2.4 / 5 GHz
ANI (Adaptive Noise Immunity)
RailBox Wave 2
1 or 2 radios IEEE 802.11a/b/g/n/ac Wave 2
MU-MIMO 4T4R
2.4 / 5 GHz
ANI (Adaptive Noise Immunity)
- WiFi Radio Data Rate
RailBox
802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps
802.11n: MCS0-7,3 streams (6.5 to 450 Mbps)
802.11ac: MCS0-9, 3 streams (6.5 Mbps to 1.3 Gbps)
RailBox Wave 2
802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps
802.11n: MCS0-7, 3 streams (6.5 to 450 Mbps)
802.11ac Wave 2 : MCS0-9,4 streams (6.5 Mbps to 1.73 Gbps)
- Operating Frequencies
ISM: 2.4-2.483 GHz (up to 14 channels)
UNII: 5.15-5.25 GHz (up 4 channels)
UNII-2: 5.25-5.35 GHz (up to 4 channels)
UNII-2 ext: 5.470-5.725 GHz (up to 11 channels)
UNII-3: 5.725-5.825 GHz (up to 4 channels)
Supports DFS and TPC
- Output Power
RailBox
Up to 24 dBm (aggregate), depending on radio card model
RailBox Wave 2
2.4 GHz: up to 26 dBm (aggregate)
5 GHz: up to 25 dBm (aggregate)
- Radio Connectors
RailBox

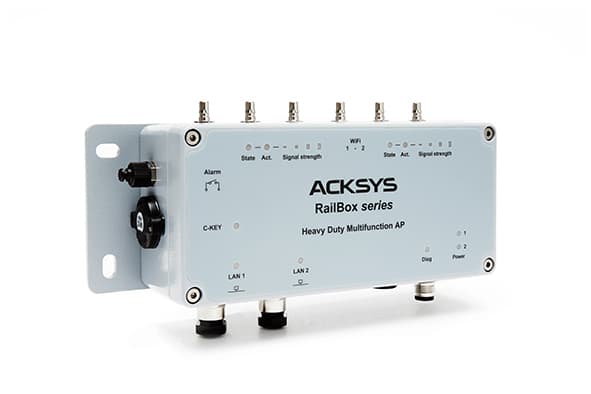

3 or 6 QMA connectors (no antenna provided)
RailBox Wave 2

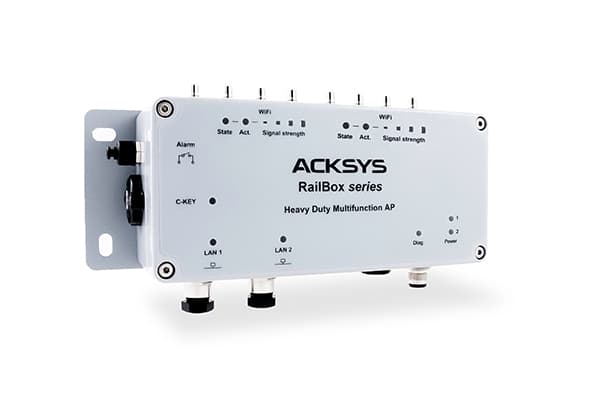

4 or 8 QMA connectors (no antenna provided)
- Security
Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3
- WiFi Modes
AP, client, MESH (IEEE 802.11s), infrastructure, AD-HOC, fast roaming (less than 30 ms), WMM QoS
- Ethernet Networking
Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay
- Ethernet Routing
Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router, carriage coupling system (SRCC)
- Administration
http, https, SNMP agent (V1, V2C, V3), WaveManager administration software, save / restore configuration key (C-Key)
- LEDs Signaling
Radio: quality, activity and status
Ethernet: link 10/100/1000 activity
Power: on-off
- Alarms & Inputs
A 3-pin Waterproof M8 connector with:
- One solid state relay output warning (with configurable action), 1 Form A, 60VDC 80mA max
- One input for external device control 24VDC max
- Power Supply
RailBox
Dual insulated redundant input (1500V insulation, M12 4-pole A-coded)
24 to 110 VDC (EN50155 nominal)
or 12 to 36 VDC depending on the model, with ground lug
PoE + (IEEE 802.3at Type 2 Class 4) model with ground lug also available
RailBox Wave 2
Dual insulated redundant input (1500V insulation, M12 4-pole A-coded)
24 to 110 VDC (EN50155 nominal)
PoE + (IEEE 802.3at Type 2 Class 4) model with ground lug also available
- Consumption
RailBox
22W typical power consumption (dual radio), 25W max
RailBox Wave 2
22W typical power consumption (dual radio), 28W max
- Dimensions
Product: compact shockproof rugged aluminum enclosure, (L: 80 x l: 175 x h: 57 mm)
Removable fixing plate: 4-point fixing plate with ground lug (L: 80 x l: 225 x h: 4 mm)
- Weight
Product: compact shockproof rugged aluminum enclosure, 900g
Removable fixing plate: 4-point fixing plate with ground lug, 200g
- Standards and Certifications
CE (RED)
Safety: EN 62368-1:2014+A11, EN62311
EMC: EN301-489-1, EN301-489-17
Radio: EN 300 328 (2.4 GHz), EN 301 893 (5 GHz, DFS)
Railway
EMC: EN 50155, EN 50121-3-2
Environmental: Shocks and vibration: EN 61373 (CAT 1 CLASS B), Climatic: EN60068-2 [-1, -2, -30]
Fire/smoke: EN45545-2 (HL3), NF F16-101 (M1F1), NFPA 130
- Environment
RailBox
Operating: -25°C to +70°C (HR 0-99%)
Extended: -40°C to +70°C / +85°C for 10 mn, EN 50155 class TX
Storage: -40°C to +80°C
IP66 seal rating, GORE ® protective vent (dehumidifying membrane)
RailBox Wave 2
Operating: -25°C to +70°C (HR 0-99%)
Extended: +85°C for 10 mn, EN 50155 class TX
Storage: -40°C to +80°C
IP66 seal rating, GORE ® protective vent (dehumidifying membrane)
