Industrial WiFi Access Point

Rugged 802.11ac WiFi access point & backbone repeater for trackside network

Description

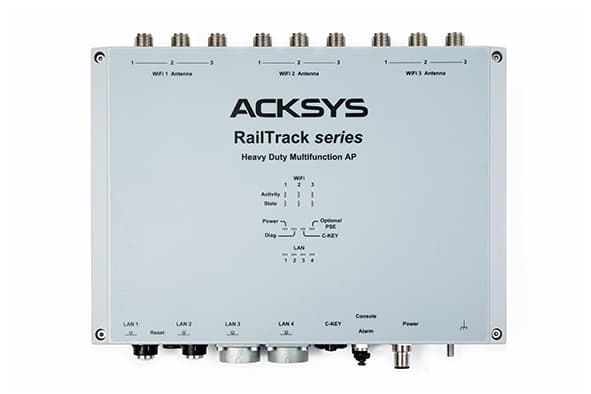

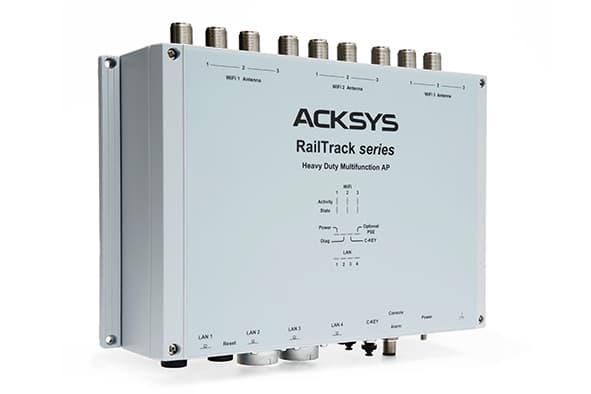

RailTrack is a ruggedized WiFi access point specially designed for railway and certified for trackside and tunnel infrastructures. It can be connected to the ground network through either Gbps fiber optic or copper connections.

Thanks to an oversized CPU architecture (Quad-Core 64-bit) and three independent 802.11ac high-speed radio cards (3 streams) delivering more than 900 Mbps (UDP) each, RailTrack access point allows the construction of high performance architectures such as 'wireless backbone' to overcome Ethernet cables along tracksides and tunnels : 2 radios can be used to build the wireless infrastructure on the trackside while the 3rd radio is used as local AP to provide communication between trackside and onboard clients (train).

Featuring an IP66 housing and rugged M12 connectors, RailTrack is ideal for wall mounting in a tunnel or mast mounting outdoor. Its all-in-one compact footprint integrates 3 radios, a 4-port Ethernet switch (2 x 10/100/1000 on M12 connectors & 2 x Gigabit optic fiber on SFP slots) with optional Ethernet bypass (daisy chain topologies) and an AC power supply. A removable key (C-KEY) allows the device configuration backup. It can thus be instantaneously restored on site in less than 2 minutes in case of maintenance or replacement of a RailTrack.

Prose

RailTrack (trackside AP unit) combined to RailBox (on-board WiFi unit) is the comprehensive connected architecture for 'train-to-trackside communication in motion' by ACKSYS. This ACKSYS solution allows reliable and very high-speed broadband train-to-trackside communications, particularly suited to broad band radio system (BBRS) for real-time video surveillance, internet on board for passengers as well as CBTC applications.

  • Triple radio 802.11a/b/g/n/ac (MIMO 3T3R), up to 3 x 1.3 Gbps (radio bit rate), up to 29 dBm output power
  • MESH, WMM QoS, multiple SSID and centralized RADIUS security supported
  • WaveManager centralized management software
  • Auto-sensing dual Gigabit 10/100/1000 Base TX auto MDI/MDIX network interface
  • 2 SFP slots: 1000 base X fiber optic or 10/100/1000 copper
  • 100 VAC to 240 VAC
  • Rugged aluminum enclosure, IP66 seal rating

Specifications

Specifications

Ethernet Interface

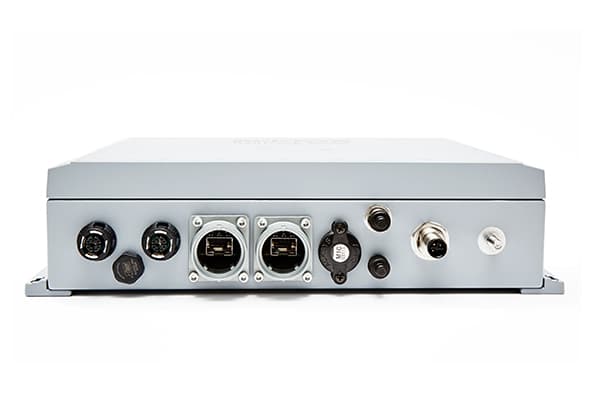

2-port Gigabit Ethernet 10/100/1000 auto-sensing, waterproof 8-point M12 X-coded connectors (CAT-6A), auto MDI/MDIX cross-over, optional Ethernet bypass that redirects the network traffic in case of device or power supply failure (for daisy chain topologies), 1-port PoE+ PSE optional (IEEE 802.3at Type 2 Class 4)

2 SFP slots IP67 OSIS by Radiall™: 1000 base X fiber optic or 10/100/1000 copper

WiFi Interface

3 radios IEEE 802.11a/b/g/n or IEEE 802.11a/b/g/n/ac, MIMO 3T3R, 2.4 / 5 GHz, ANI (Adaptive Noise Immunity)

WiFi Radio Data Rate

802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps

802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps

802.11n: MCS0-7, 3 streams (6.5 to 450 Mbps)

802.11ac: MCS0-9, 3 streams (6.5 Mbps to 1.3 Gbps)

Operating Frequencies

ISM: 2.4-2.483 GHz (up to 14 channels)

UNII: 5.15-5.25 GHz (up 4 channels)

UNII-2: 5.25-5.35 GHz (up to 4 channels)

UNII-2 ext: 5.470-5.725 GHz (up to 11 channels)

UNII-3: 5.725-5.825 GHz (up to 4 channels)

Supports DFS and TPC

Output Power

Up to 29 dBm (aggregate), depending on radio card model

Radio Connectors

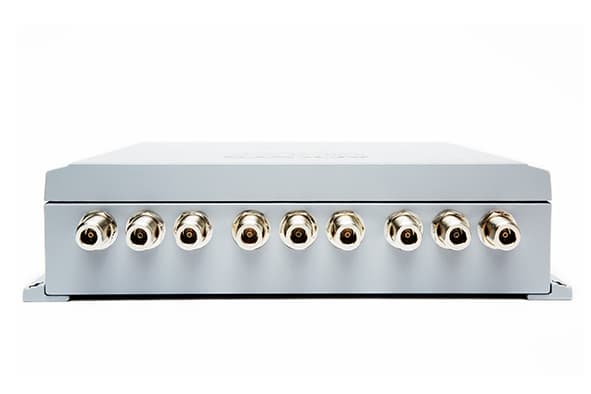

9 N-type connectors (no antenna provided)

Security

Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3

WiFi Modes

Access point, client, MESH (IEEE 802.11s), infrastructure, AD-HOC, WMM QoS

Ethernet Networking

Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay

Ethernet Routing

Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router

Administration

http, https, SNMP agent (V1, V2C, V3), WaveManager administration software, save / restore configuration key (C-Key)

LEDs Signaling

Radio: activity and status

Ethernet (copper): link 10/100/1000 and activity

Ethernet (fiber): link and activity

PoE+ PSE: on-off

Power: on-off

Diagnostic

C-Key

Alarms & Inputs

A 3-pin Waterproof M8 connector with:

  • One solid state relay output warning (with configurable action), 1 Form A, 60VDC 80mA max
  • One input for external device control 24VDC max
Power Supply

100 VAC to 240 VAC (M12 3 poles S-coding connector), 50/60Hz, M6 ground screw

Consumption

30 W max (PoE powered device consumption excluded)

Dimensions

Rugged aluminum enclosure, L: 305 x l: 200 x h: 75 mm with fixing points

Weight

3.5 Kg

Standards and Certifications

CE (RED)

Safety: EN 62368-1:2014+A11, EN62311

EMC: EN 301 489 [-1], [-17]

Radio: EN 300 328 (2.4 GHz), EN 301 893 (5 GHz, DFS)

Railway

EMC: EN 50121-4

Environmental: Climatic EN60068-2 [-1, -2, -30]

Fire/smoke: EN45545-2 (HL3), NF F16-101 (M1F1)

Environment

IP66 seal rating

Operating: -25°C to +70°C (HR 0-99%) or extended -40°C to +75°C

Storage: -40°C to +80°C

GORE ® protective vent (dehumidifying membrane)
