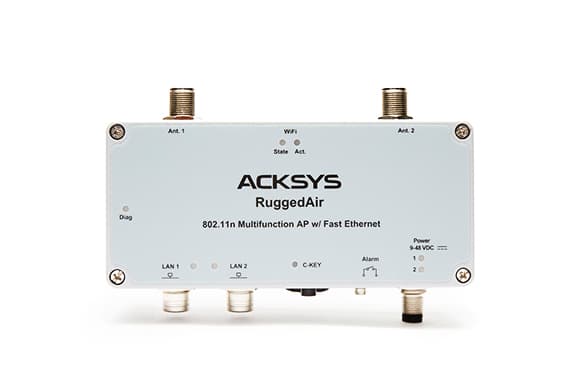

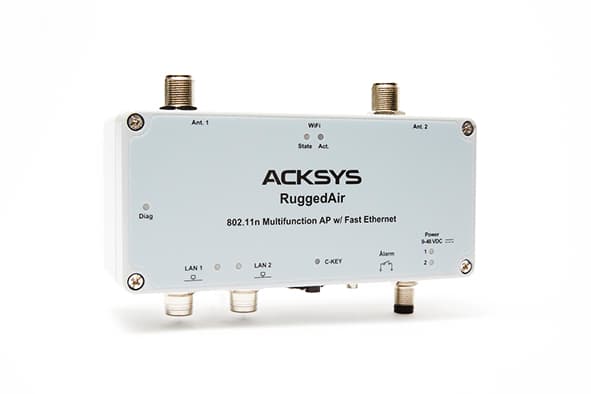

RuggedAir100
Industrial WiFi Access PointWiFi access point, client, repeater & Mesh point designed for industrial applications in harsh environments
RuggedAir100
Industrial WiFi Access PointWiFi access point, client, repeater & Mesh point designed for industrial applications in harsh environments
Description
As its predecessor (WLg-ABOARD) with which it is compatible, RuggedAir100 is an 'all-in-one' multifunction product (access point, client, repeater, router & Mesh point) designed for industrial applications in harsh environment (IP66 waterproof, shocks and vibrations proof, extended temperature range, M12 connectors). It can be used either on the ground to create indoor or outdoor WiFi coverages, or on board to connect all types of mobile equipment or vehicles (trams, construction/agricultural machines, trucks, automated cranes, harbor cranes) to the ground network.
- All-in-one: AP/client/repeater/Mesh point
- WiFi 802.11n (MIMO 2T2R), 2.4/5 GHz
- Advanced security functions, VPN, firewall
- WaveManager centralized management software
- Operating System: WaveOS
- Rugged device: shocks & vibrations proof, IP66, dual insulated redundant input +9VDC to +48VDC or PoE
- Fast roaming < 30 ms
- Compatible with its predecessor WLg-ABOARD
Features
Features
Reliability
The RuggedAir100 is equipped with a redundant wide range (9-48 VDC) or POE power supply as well as 2 antennas making it possible to reinforce the quality of the radio link and to increase the throughput.
Mobility
The RuggedAir100's roaming performances (<30 ms) and its shocks/vibrations resistance make it easy to integrate in any type of mobile equipment or vehicle.
Ease of Deployment
The RuggedAir100 can be easily managed from the network with the centralized management software WaveManager, through SNMP or from a simple web browser. It also has a C-Key (key saving configuration) for instant replacement on site.
Security
The RuggedAir100 integrates advanced security standards (Firewall, VPN, 802.1X) as well as routing and filtering functions to facilitate mass deployments.
Specifications

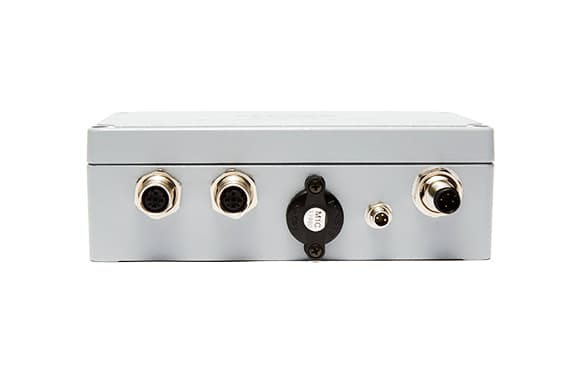

- Ethernet Interface
2-port Ethernet 10/100 auto-sensing, Base TX, auto MDI/MDIX, M12 D-coded Ethernet interface
- WiFi Interface
1 radio 802.11n (MIMO 2T2R, 300 Mbps), ANI (Adaptive Noise Immunity)
- WiFi Radio Data Rate
802.11a: 6, 9, 12, 18, 24, 36, 48 & 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 & 54 Mbps
802.11n: MCS0-7, 2 streams (6.5 to 300 Mbps)
- Operating Frequencies
ISM: 2.4-2.483 GHz (up to 14 channels)
UNII: 5.15-5.25 GHz (up to 4 channels)
UNII-2: 5.25-5.35 GHz (up to 4 channels)
UNII-2 ext: 5.470-5.725 GHz (up to 11 channels)
UNII-3: 5.725-5.825 GHz (up to 4 channels)
Supports DFS and TPC
- Output Power
2.4 GHz: 23,5 dBm (aggregate)
5 GHz: 21 dBm (aggregate)
- Sensitivity Maximum
WiFi 802.11n receiver: -92 dBm for 802.11 b/g/n and -96 dBm for 802.11a/n

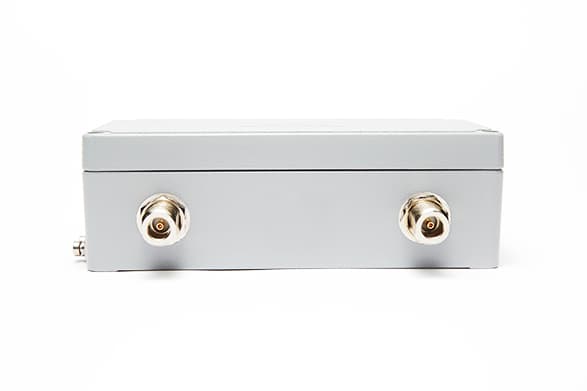

- Radio Connectors
2 N-type connectors
- Security
Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3
- WiFi Modes
Access point, MESH (IEEE 802.11s), infrastructure, AD-HOC, fast roaming (less than 30 ms), WMM QoS
- Ethernet Networking
Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay
- Ethernet Routing
Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router
- Administration
http, https, SNMP agent (V1, V2C, V3), WaveManager administration software, save / restore configuration key (C-Key)
- LEDs Signaling
Radio: activity - status
Ethernet: link - activity
Power: on-off
C-Key: activity
- Alarms & Inputs
A 3-pin Waterproof M8 connector with:
- One solid state relay output warning (with configurable action), 1 Form A, 60VDC 80mA max
- One input for external device control 24VDC max
- Power Supply
+9VDC to +48VDC, redundant, PoE af (at type 1, mode A/endspan compatible), M12 connector 4-pole A-coded
- Consumption
IDLE mode: 1.7 W
Maximum average: 3.92 W
Recommended: 6.5 W
- Dimensions
L: 175 x l: 80 x h: 75 mm (without connectors)
- Weight
800 g
- Standards and Certifications
CE (RED)
Safety: EN 62368-1:2014+A11, EN62311
EMC: EN 301 489 [-1], [-17]
Radio: EN 300 328 (2.4 GHz), EN 301 893 (5 GHz, DFS)
FCC
Radio: FCC ID Z9W-RMB
Environmental
Shocks & vibrations: EN 61373 (CAT 1 CLASS B)
Climatic : EN60068-2 [-1, -2, -30]
- Environment
IP66
Operating: -40°C to +70°C
Humidity: 0-99%
