RuggedAir1000
Industrial WiFi Access Point11ac WiFi access point for industrial applications in harsh environment and railway
RuggedAir1000
Industrial WiFi Access Point11ac WiFi access point for industrial applications in harsh environment and railway
Description
The RuggedAir1000 is an all-in-one (multifunction product: access point, client, repeater, router & mesh) designed for industrial applications in harsh environments. It can be used on the ground to create a WiFi coverage at the depot or on board to connect vehicles to the ground network (trams, subways), for car-to-car communication and as an access point for passengers. It allows high-speed data transmission indoors and outdoors thanks to its extended WiFi coverage and/or from a connected mobile device. It integrates advanced security standards (WPA2-Enterprise (Radius), DoS, Firewall) as well as routing and filtering functions to facilitate mass deployments.
Features
Features
High Performance
High-speed 802.11ac, 1.3 Gbps (radio data rate), MIMO 3T3R.
Robustness
Waterproof, IP66, with M12 connectors, 24 VDC or PoE power supply and 3 antennas to improve throughput and enhance the quality of the radio link.
Mobility
The RuggedAir100's roaming performances (<30 ms) and shock/vibration resistance (EN61373) make it easy to integrate into trams, subways, trains, various machines, bridge cranes, etc.
Ease of Deployment
The RuggedAir1000 can be easily administered from WaveManager and WaveViewer. Embedded, it can be configured directly from the onboard computer via SNMP.
Specifications
- Ethernet Interface

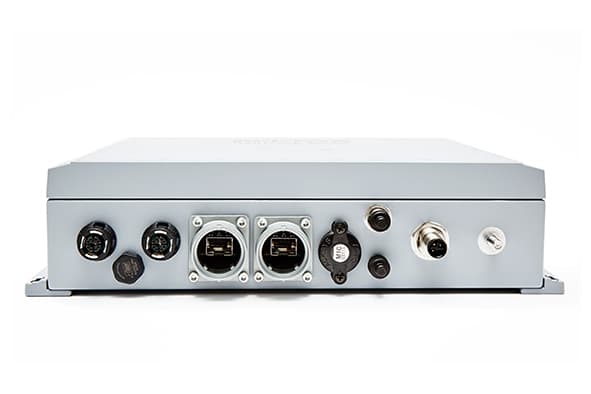

2-port Gigabit Ethernet 10/100/1000 auto-sensing base T, auto MDI/MDIX cross-over, M12 X-coded connectors
- WiFi Interface
1 radio 802.11ac (MIMO 3T3R, 1.3 Gbps), ANI (Adaptive Noise Immunity)
- WiFi Radio Data Rate
802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps
802.11n: MCS0-7, 3 streams (6.5 to 450 Mbps)
802.11ac: MCS0-9, 3 streams (6.5 Mbps to 1.3 Gbps)
- Operating Frequencies
ISM: 2.4-2.483 GHz (up to 14 channels)
UNII: 5.15-5.25 GHz (up 4 channels)
UNII-2: 5.25-5.35 GHz (up to 4 channels)
UNII-2 ext: 5.470-5.725 GHz (up to 11 channels)
UNII-3: 5.725-5.825 GHz (up to 4 channels)
Supports DFS and TPC
- Output Power
Up to 29 dBm (aggregate), depending on radio card model
- Radio Connectors

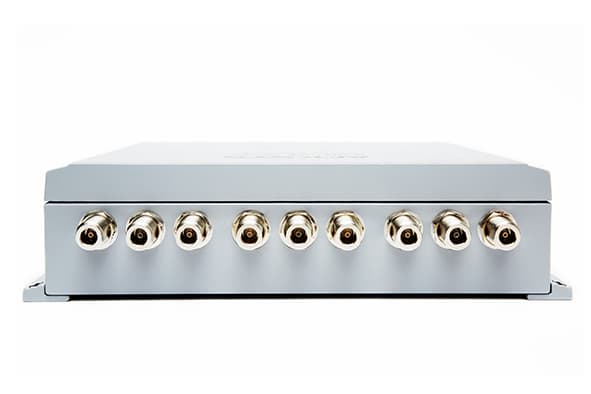

9 N-type connectors (no antenna provided)
- Security
Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3
- WiFi Modes
Access point, MESH (IEEE 802.11s), infrastructure, AD-HOC, WMM QoS
- Ethernet Networking
Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay
- Ethernet Routing
Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router
- Administration
http, https, SNMP agent (V1, V2C, V3), WaveManager administration software, save / restore configuration key (C-Key)
- LEDs Signaling
Radio: activity and status
Ethernet (copper): link 10/100/1000 and activity
Ethernet (fiber): link and activity
PoE+ PSE: on-off
Power: on-off
Diagnostic
C-Key
- Alarms & Inputs
A 3-pin Waterproof M8 connector with:
- One solid state relay output warning (with configurable action), 1 Form A, 60VDC 80mA max
- One input for external device control 24VDC max
- Power Supply
100 VAC to 240 VAC (M12 3 poles S-coding connector), 50/60Hz, M6 ground screw
- Consumption
30 W max (PoE powered device consumption excluded)
- Dimensions
Rugged aluminum enclosure, L: 305 x l: 200 x h: 75 mm with fixing points
- Weight
3.5 Kg
- Standards and Certifications
CE (RED)
Safety: EN 62368-1:2014+A11, EN62311
EMC: EN 301 489 [-1], [-17]
Radio: EN 300 328 (2.4 GHz), EN 301 893 (5 GHz, DFS)
Railway
EMC: EN 50121-4
Environmental: Climatic EN60068-2 [-1, -2, -30]
Fire/smoke: EN45545-2 (HL3), NF F16-101 (M1F1)
- Environment
IP66 seal rating
Operating: -25°C to +70°C (HR 0-99%) or extended -40°C to +75°C, storage: -40°C to +80°C GORE ® protective vent (dehumidifying membrane)
