Product Description
WaveNet-Ex
Industrial WiFi Access PointWiFi MIMO access point & Mesh router for hazardous areas
WaveNet-Ex
Industrial WiFi Access PointWiFi MIMO access point & Mesh router for hazardous areas
Description
WaveNet-Ex is an all-in-one WiFi device (access point, client, repeater, router & Mesh point) designed for industrial applications in zone 1 rated explosive areas. Its aluminum enclosure is perfectly suited for chemical industries, refineries, electric stations, very dusty locations as well as those where sparks and electric arcs occur. It can also be used in the sea in its stainless steel version and thus defy the rusting effects of salt water.
WaveNet-Ex is ideal for tele-operation of heavy machinery from a remote control station, collision avoidance, localization of people and goods and other services as evacuation signaling systems, VoIP wireless phones, mobile data download (smartphones, tablets…), mobile & fixed IP video
Prose
WaveNet-Ex relies on the multi-streams MIMO technology that contributes to an expanded coverage, higher data throughput and increased radio link reliability to ensure seamless communication. The three antenna connectors protected by an intrinsic barrier allow the use of non-ATEX antennas for a reduced installation cost and an increased flexibility.
It can be administered from ACKSYS WaveManager & WaveViewer applications or via SNMP or a web browser and works with any kind of industrial Ethernet protocol. It also offers routing, filtering and advanced security features (WPA2-Enterprise (Radius), DoS, Firewall).
- WiFi access point, client, repeater, router & Mesh point* (*depends on the model)
- ATEX / IECEX certification: II 2G Ex db IIC T5-T4 Gb, II 2D Ex tb IIIC T110°C/T140°C Db, I M2 Ex db I Mb (SWS only)
- Zone 1, 2, 21 & 22

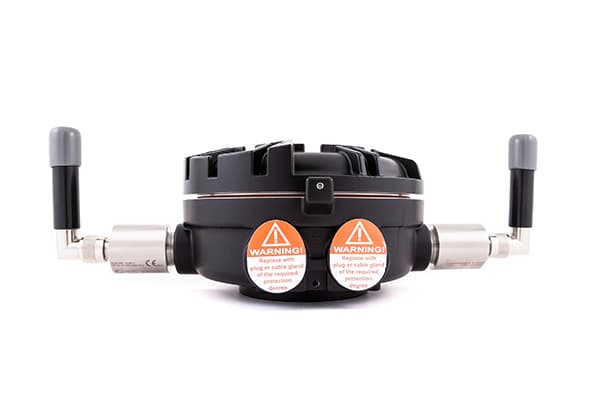

- Heavy duty aluminum or stainless steel IP68 enclosure
- 2 or 3 intrinsically safe RF outputs (support any type of antenna)
- Gigabit Ethernet network interface
- DC power supply input (+18VDC to +60VDC) or PoE or PPoE (Passive Power over Ethernet)
Specifications
- Ethernet Interface
1-port Gigabit Ethernet 10/100/1000 Base TX auto-sensing, auto MDI/MDIX cross-over, RJ45
- WiFi Interfaces
Model 1033
802.11n, MIMO 2T2R, 2.4/5GHz, ANI (Adaptive Noise Immunity)
Model 1133
802.11ac, MIMO 2T2R, 2.4/5GHz, ANI (Adaptive Noise Immunity)
Model 1230
802.11n, MIMO 2T2R, 2.4/5GHz + 802.11ac, 2.4/5GHz, ANI (Adaptive Noise Immunity)
- WiFi Radio Data Rate
Model 1033
Up to 300 Mbps
Model 1133
Up to 867 Mbps
Model 1230
Up to 300 Mbps (802.11n) + up to 433 Mbps (802.11ac)
- Operating Frequencies
From 2.4 GHz to 5.825 GHz
- Output Power
Model 1033
2.4 GHz: up to 23.5 dBm (aggregate)
5 GHz: up to 21 dBm (aggregate) ± 2 dB
Model 1133
2.4 GHz: up to 20.8 dBm (aggregate)
5 GHz: up to 19.8 dBm (aggregate) ± 2 dB
Model 1230
2.4 GHz: up to 23.5 dBm (aggregate)
5 GHz: up to 21 dBm (aggregate) ± 2 dB (802.11n)
2.4 GHz: up to 19 dBm5 GHz : up to 18 dBm ± 2 dB (802.11ac)
- Sensitivity
From -92 dBm to -96 dBm
- Antennas
Up to 3 intrinsically safe RF outputs: supports any type of antennas
NB: Antenna gain is limited in accordance with regulation domain as well as group of operations (see operation manual)
- Radio Connectors
9 N-type connectors (no antenna provided)
- Security
Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3, isolated clients (in AP mode)
- WiFi Modes
Access point, client, MESH (IEEE 802.11s), infrastructure, AD-HOC, fast roaming (less than 30 ms), WMM QoS
- Ethernet Networking
Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay
- Ethernet Routing
Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router
- Administration
http, https, SNMP agent (V1, V2C, V3), WaveManager administration software
- Power Supply
+18VDC to +60VDC or PoE or PPoE (Passive Power over Ethernet), M25 x 1.5 or 3/4" npt-f cable gland
- Consumption
8 Watts for A10 models
14 Watts for A11 and A12 models
- Enclosure
Aluminum polyester powder coated or stainless steel AISI 316 (CF8M) electropolish
- Dimensions
Aluminum enclosure: 179.8mm (+ 2 couplers) x 180mm (+1 coupler) x 89.5mm
Stainless steel enclosure: 180.5mm (+ 2 couplers) x 196mm (+1 coupler) x 90mm
One metric coupler: 58.5mm / One npt coupler : 70mm
- Weight
Enclosure weight (aluminum models): 2.6 Kg
- Standards and Certifications
II 2G Ex db IIC T5-T4 Gb
II 2D Ex tb IIIC T110°C/T140°C Db
I M2 Ex db I Mb (SWS only)
Zone 1, 2, 21 & 22
IECEx and ATEX Gas and Dust (SWA only)
IECEx and ATEX Gas, Dust and Mining (SWS only)
- Environment
IP68
Operating temperature: -40°C to +60°C
Storage: -40°C to +80°C
Humidity: 5% to 95% (non-condensing)
