AXI Series

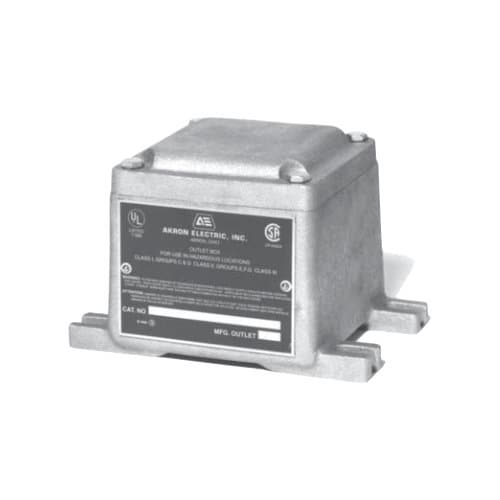

Hazardous Location Junction BoxExplosion-proof solid-cover instrument housing
AXI Series
Hazardous Location Junction BoxExplosion-proof solid-cover instrument housing
Description
- All are available in NEMA 4X with neoprene gasket for water tight applications
- All enclosures are suitable for field drilling and tapping.
- Cast from copper-free aluminum (max. 0.25% copper content)
- Attractive wheelabrate finish
- Durable cast mounting feet and easily accessible grounding screw
- Expanded internal space for splicing or terminal blocks
Prose
Available Sizes
The AXI Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.
Applications
To be used as a Junction Box when space is limited
For use in Waste Water Treatment Plants, Processing Facilities, Refineries, Chemical Plants and other Hazardous Locations
Materials
- Enclosure
Copper-free Aluminum (less than 0.25% copper content)
- Cover Bolts
Cad-Plated or Stainless Steel (Optional)
- Mounting Pan (Optional)
Aluminum*
Phenolic, Galvanized available upon request.
- O-Ring (Optional)
Buna-N
For detailed specifications, refer to the Product Catalogue.
Standards
- Approvals
UL CLASSIFIED - Standard 886 - E94590
cUL (AXI 4 & 6) - Standard C22.2 No. 30-M1986 and No. 25-1966
CSA Certified (AXI 3) - Standard C22.2 No. LR64264
- Compliances
N.E.C. - Class. I, Div. 1 & 2 Groups B*, C & D Class. II, Div. 1 & 2 Groups E, F & G Class. III
NEMA 7 & 9 (Optional 3, 4X)
- AXI 484 Only
For detailed specifications, refer to the Product Catalogue.
