Product Description
AXJ-FCS Series

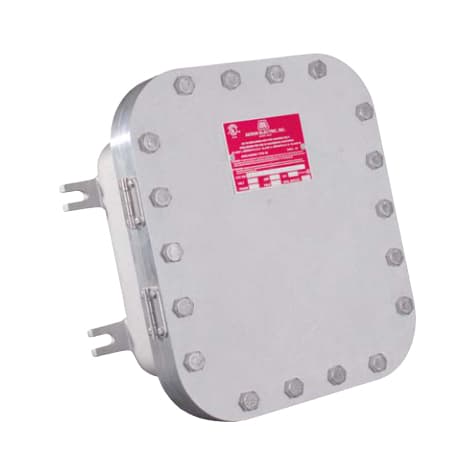

Hazardous Location Junction BoxExplosion-proof flat cover junction boxes
AXJ-FCS Series
Hazardous Location Junction BoxExplosion-proof flat cover junction boxes
Description
- Aluminum Flat Panel Cover
- External Machined Flange Joint Design Integral Cast Mounting Feet
- Machined Surface Perimeter for ease of
- hinge installation
- (N5) Stainless Steel or (E3) Triple Lead Stainless Steel Captive Quick Thread Cover Bolts (Optional-Domestic Only)
- Ground Lug Package (Optional) Cast Mounting Pan Bosses
- All enclosures suitable for drilling and tapping
- Stainless Steel Shot Blast or Sandblasted natural finish Standard round or custom sized windows available Cast aluminum and stainless steel hinge (optional)
- All enclosures suitable for NEMA 4X (optional), specify when required
Prose
Available Sizes
The AXJ-FSC Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.
Applications
Applications where hazardous gases, vapors, liquids, flammable fibers, flyings or combustible dusts can exist during the time of operation. Locations including Oil /Petroleum Refineries, Waste Water Treatment Plants, Petrochemical Plants, Mining Facilities, etc. Junction Box can be used to house electrical components for viewing /monitoring. These components can be controlled or viewed in hazardous environments (indoor & outdoor)
Materials
- Enclosure
Copper-free Aluminum (less than 0.25% copper content)
- Cover Bolts
Cad-Plated (Standard) or Stainless Steel N5 /E3 (Specify)
- Hinges
Stainless Steel or Medium to Heavy Duty Cast Aluminum
- Mounting Pan (Optional)
Aluminum
Galvanized Steel or Phenolic Materials available upon request.
- O-Ring (Optional)
Buna-N
For detailed specifications, refer to the Product Catalogue.
Standards
- Approvals
UL CLASSIFIED - Standard 1203, UL-14600
UL CLASSIFIED - With Viewing window -UL E139669 (meter enclosure)
cUL (Canada) - Standard C22.2 No. 30-M1986 & No. 25-1966
- Compliances
CL. I, Div. 1 & 2 Groups B, C & D CL.
II, Div. 1 & 2 Groups E, F & G CL. III
NEMA 3, 4X (Optional), 7 & 9
For detailed specifications, refer to the Product Catalogue.
