Product Description
Description
- External machined flange joint design
- Integral cast mounting feet
- Machined surface perimeter for ease of hinge installation
- (N5) stainless steel (optional) or (E3) triple lead stainless steel
- Captive quick thread cover bolts (optional-domestic only)
- Ground lug package (optional)
- Cast mounting pan bosses
- All enclosures suitable for drilling and tapping
- Stainless steel shot or sandblasted natural finish
- Cast aluminum or stainless steel hinge (optional)
- Atex certification (optional)
Prose
Available Sizes

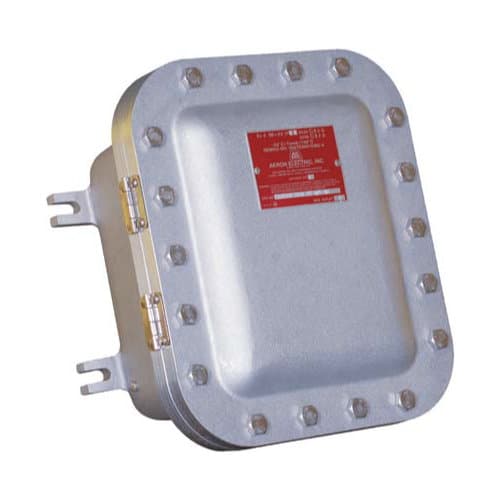

The AXJ Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.
Applications
Applications where hazardous gases, vapors, liquids, flammable fibers, flyings or combustible dusts can exist during the time of operation. Locations including Oil/Petroleum Refineries, Waste Water Treatment Plants, Petrochemical Plants, Mining Facilities, etc. Junction Box can be used to house electrical components for viewing/monitoring. Applications in hazardous environments such as those listed above (indoor & outdoor).
ATEX Certification (Optional)
ATEX certification is available upon request. Certain features are added to the AXJ Series if ATEX is required:
- Metric cover bolts
- External ground screw
- If NEMA 4 O-ring is required, IP 66 rating applies
Materials
- Enclosure
Copper-free Aluminum (less than 0.25% copper content)
- Cover Bolts
Cad-Plated (Standard) or Stainless Steel N5 /E3 (Specify)
- Hinges
Stainless Steel or Medium to Heavy Duty Cast Aluminum
- Mounting Pan (Optional)
Aluminum
Galvanized Steel or Phenolic Materials available upon request.
- O-Ring (Optional)
Buna-N
For detailed specifications, refer to the Product Catalogue.
Standards
- Approvals
UL LISTED - Standard 886
CSA Certified (Canada) - Standard C22.2 -No. M1984
- Compliances
CL. I, Div. 1 & 2 Groups B, C & D
CL. II, Div. 1 & 2 Groups E, F & G
CL. III
NEMA 3, 4X (Optional), 7 & 9
For detailed specifications, refer to the Product Catalogue.
