Product Description

AKRON Electric

CXI Pendant Series

Hazardous Location Control Station

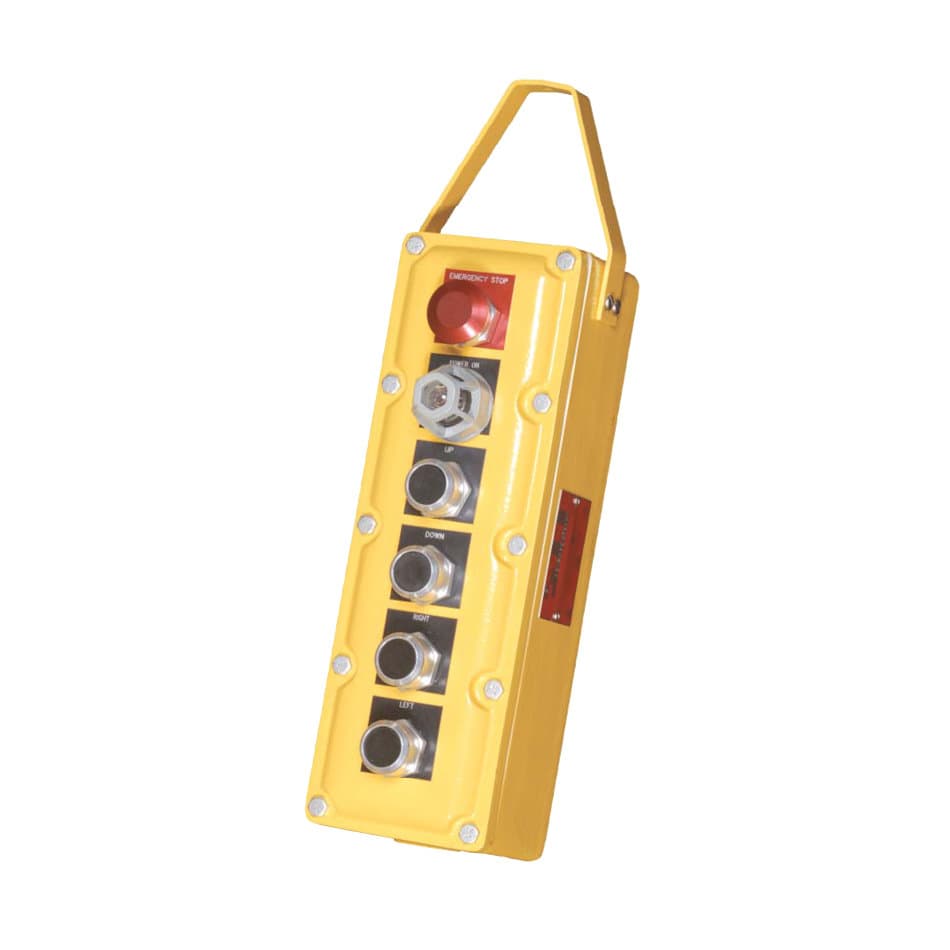

Explosion-proof pendant station

Description

  • All are available in NEMA 4X with neoprene gasket for water tight applications
  • All enclosures are suitable for surface or panel mounting. Cast from light-weight corrosion resistant aluminum Attractive wheelabrate finish
  • Durable cast mounting feet and easily accessible grounding screw Expanded internal space for splicing or terminal blocks
  • Special Corrosion-Resistant Epoxy Coating available upon request AKRON Electric Operators
  • Special handle for project use in cranes, lifts, etc.
  • XP Pilot Light Series equipped with bayonet receptacle bases and your choice of 12, 24, 48, 120 or 240 volt LED lamps
  • Lens Guard comes with standard light-gray powder coat finish

Prose

Available Sizes

The CXI Pendant Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.

Materials

Enclosure

Copper-free Aluminum (less than 0.25% copper content)

Cover Bolts

Cad-Plated (Standard) or Stainless Steel (Specify)

Mounting Pan (Optional)

Aluminum

Galvanized Steel or Phenolic Materials available upon request.

For detailed specifications, refer to the Product Catalogue.

Standards

Approvals

UL CLASSIFIED - Standard 1203, -E139669

CSACertified - Standard C22.2 No. LR86146

Compliances

N.E.C. - Class. I, Div. 1 & 2 Groups C & D

Class. II, Div. 1 & 2 Groups E, F & G

Class. III

NEMA 7 & 9 (Optional 3, 4X)

For detailed specifications, refer to the Product Catalogue.
