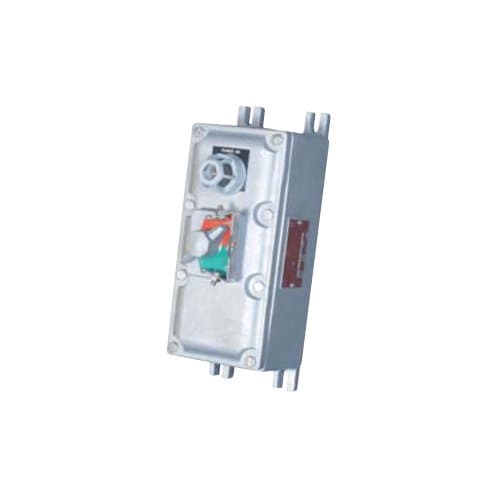

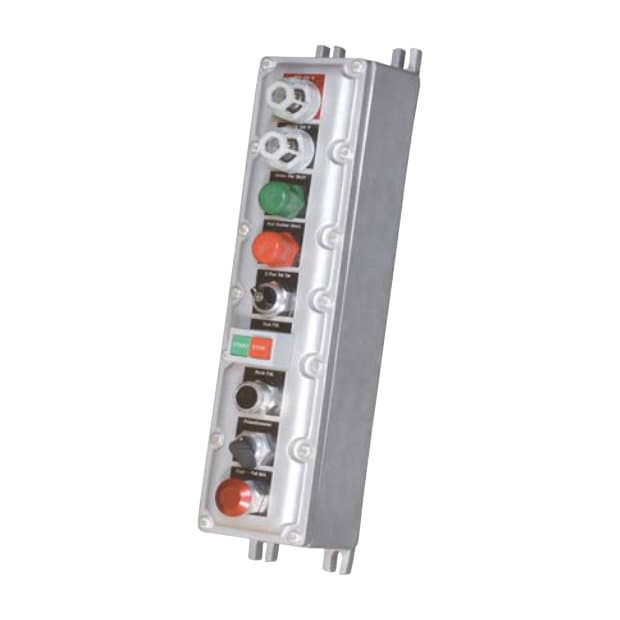

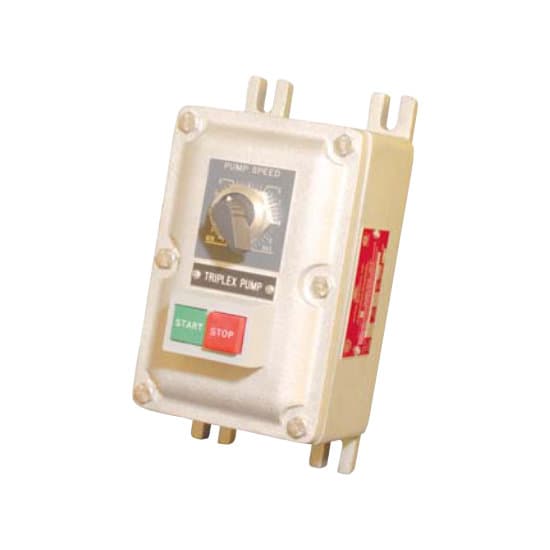

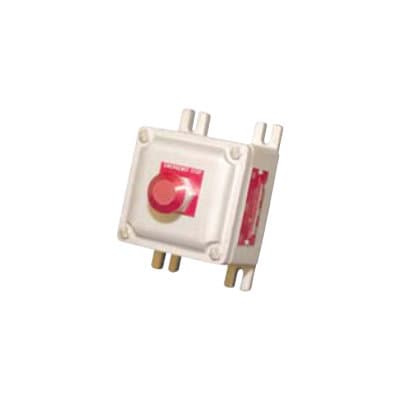

Product Description
Description
- All are available in NEMA 4X with neoprene gasket for water tight applications.
- All enclosures are suitable for surface or panel mounting.
- Cast from light-weight corrosion resistant aluminum Attractive wheelabrate finish.
- Durable cast mounting feet and easily accessible grounding screw. Expanded internal space for splicing or terminal blocks.
- Available to use with Mini Pilot Device Series (1 center to center).
Prose
Available Sizes
The CXI Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.
Materials
- Enclosure
Copper-free Aluminum (less than 0.25% copper content)
- Cover Bolts
Cad-Plated (Standard) or Stainless Steel (Specify)
- Mounting Pan (Optional)
Aluminum
Galvanized Steel or Phenolic Materials available upon request.
For detailed specifications, refer to the Product Catalogue.
Standards
- Approvals
UL CLASSIFIED - Standard 1203, UL-E139669
cUL (CXI 4 & 6) - Standard C22.2 No. 30-M1986 and No. 25-1966
CSA Certified (CXI 3) - Standard C22.2 No. LR86146
- Compliances
N.E.C. - Class. I, Div. 1 & 2 Groups B (CXI 484 Only), C & D
Class. II, Div. 1 & 2 Groups E, F & G
Class. III
NEMA 7 & 9 (Optional 3, 4X)
For detailed specifications, refer to the Product Catalogue.
