Product Description
CXJ-FCS Series

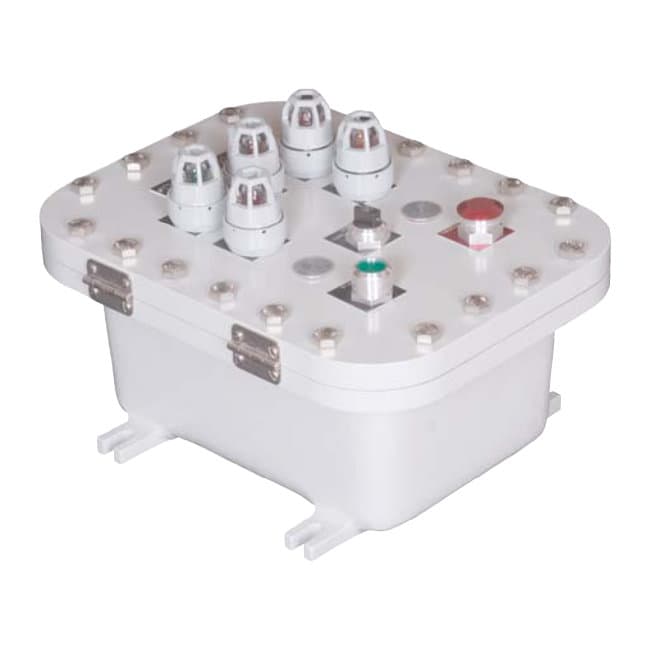

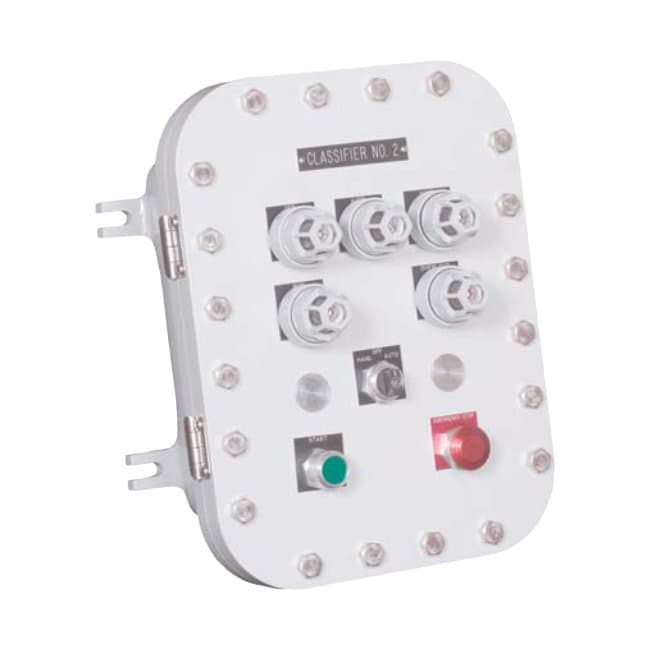

Hazardous Location Control StationExplosion-proof external flange control station with flat cover
CXJ-FCS Series
Hazardous Location Control StationExplosion-proof external flange control station with flat cover
Description
- Aluminum Flat Panel Cover
- External Machined Flange Joint Design Integral Cast Mounting Feet
- Machined Surface Perimeter for ease of hinge installation
- (N5) Stainless Steel or (E3) Triple Lead Stainless Steel Captive Quick Thread Cover Bolts (Optional-Domestic Only)
- Ground Lug Package (Optional) Cast Mounting Pan Bosses
- All enclosures suitable for drilling and tapping
- Stainless Steel Shot Blast or Sandblasted natural finish Standard round or custom sized windows available Cast aluminum and stainless steel hinge (optional)
- All enclosures suitable for NEMA 4X (optional), specify when required
Prose
Available Sizes
The CXJ-FCS Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.
Materials
- Enclosure
Copper-free Aluminum (less than 0.25% copper content)
- Cover Bolts
Cad-Plated (Standard) or Stainless Steel N5 /E3 (Specify)
- Hinges
Stainless Steel or Medium to Heavy Duty Cast Aluminum
- Mounting Pan (Optional)
Aluminum
Galvanized Steel or Phenolic Materials available upon request.
For detailed specifications, refer to the Product Catalogue.
Standards
- Approvals
UL CLASSIFIED - Standard 1203, UL-E139669
cUL (Canada) - Standard C22.2 No. 30-M1986 & No. 25-1966
- Compliances
CL. I, Div. 1 & 2 Groups B, C & D
CL. II, Div. 1 & 2 Groups E, F & G CL. III
NEMA 3, 4X (Optional), 7 & 9
For detailed specifications, refer to the Product Catalogue.
