Product Description
CXJ Series

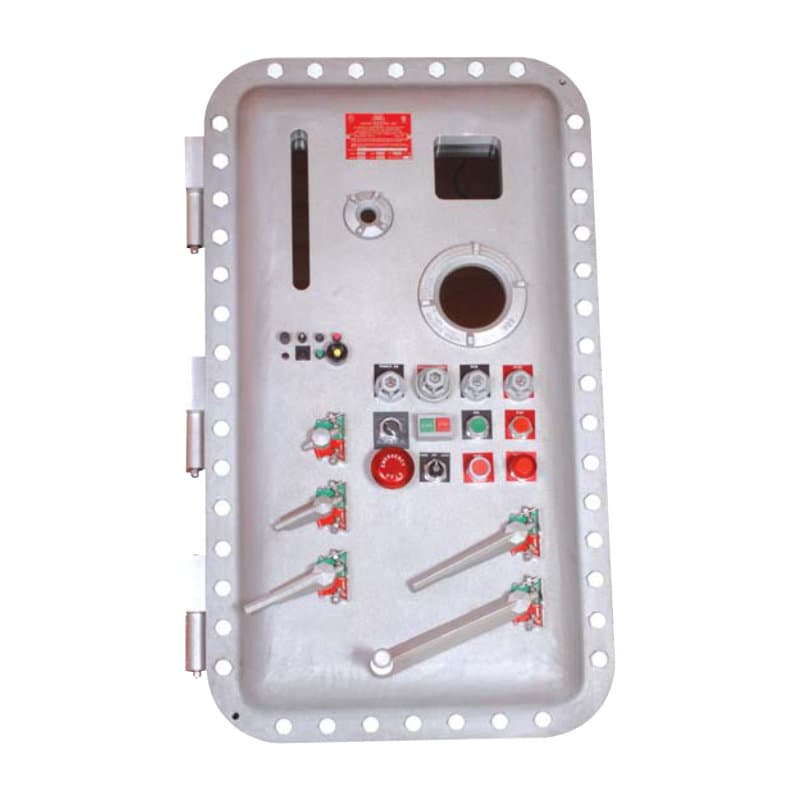

Hazardous Location Control StationExplosion-proof external flange control station
CXJ Series
Hazardous Location Control StationExplosion-proof external flange control station
Description
- External Machined Flange Joint Design Integral Cast Mounting Feet
- Machined Surface Perimeter for ease of hinge installation
- (N5) Stainless Steel or (E3) Triple Lead Stainless Steel Captive Quick Thread Cover Bolts (Optional-Domestic Only)
- Ground Lug Package (Optional) Cast Mounting Pan Bosses
- All enclosures suitable for drilling and tapping
- Stainless Steel Shot Blast or Sandblasted natural finish Standard round or custom sized windows available Cast aluminum and stainless steel hinge (optional)
- All enclosures suitable for NEMA 4X (optional), specify when required
Prose
Available Sizes
The CXJ Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.
ATEX Certification (Optional)
ATEX certification is available upon request. Certain features are added to the CXJ Series if ATEX is required:
- Metric cover bolts
- External ground screw
- If NEMA 4 O-ring is required, IP 66 rating applies
Materials
- Enclosure
Copper-free Aluminum (less than 0.25% copper content)
- Cover Bolts
Cad-Plated (Standard) or Stainless Steel N5 /E3 (Specify)
- Hinges
Stainless Steel or Medium to Heavy Duty Cast Aluminum
- Mounting Pan (Optional)
Aluminum
Galvanized Steel or Phenolic Materials available upon request.
For detailed specifications, refer to the Product Catalogue.
Standards
- Approvals
UL CLASSIFIED - Standard 1203, UL-E139669 (-20C to +40C)
cUL (Canada) - Standard C22.2 No. 30-M1986 & No. 25-1966
CSA Certified (Canada) - Standard C22.2 - No. LR86146 (-50C to +40C)
- Compliances
CL. I, Div. 1 & 2 Groups B, C & D
CL. II, Div. 1 & 2 Groups E, F & G CL. III
NEMA 3, 4X (Optional), 7 & 9
For detailed specifications, refer to the Product Catalogue.
