Product Description
Description
- Internal machined flange joint design
- Integral cast mounting feet Ground lug package
- Cast mounting bosses
- All enclosures are suitable for field drilling and tapping Stainless Steel Shot
Prose
Available Sizes

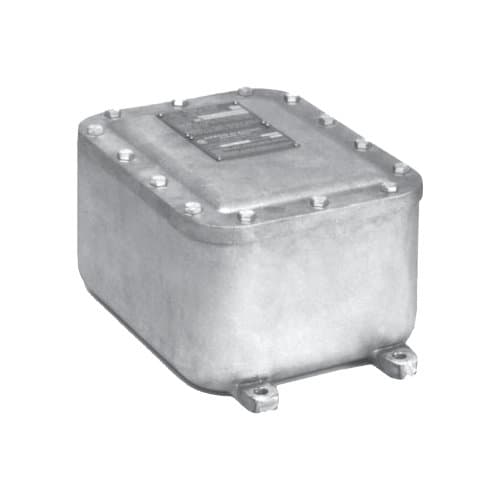

The AXJ Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.
Applications
Applications where hazardous gases, vapors, liquids, flammable fibers, flyings or combustible dusts can exist during the time of operation. Locations including Oil/Petroleum Refineries, Waste Water Treatment Plants, Petrochemical Plants, Mining Facilities, etc. Junction Box can be used to house electrical components for viewing/monitoring. Applications in hazardous environments such as those listed above (indoor & outdoor).
Materials
- Enclosure
Copper-free Aluminum (less than 0.25% copper content)
- Cover Bolts
Cad-Plated Aluminum (Standard) or Stainless Steel (Optional)
- Hinges
Stainless Steel (Optional)
- Mounting Pan (Optional)
Aluminum
Stainless Steel, Galvanized available upon request.
- O-Ring (Optional)
Buna-N
For detailed specifications, refer to the Product Catalogue.
Standards
- Approvals
UL CLASSIFIED - Standard 886 -E94590
CSA Certified (Canada) - Standard C22.2 No. 30-M1984 - LR64264
- Compliances
N.E.C. (CSA) - Class. I, Div. 1 & 2 Groups B, C & D, NEMA 4X N.E.C. (UL) - Class I, Div 1 & 2 Groups C & D
Class. II, Div. 1 & 2 Groups E, F & G
Class. III
NEMA 7 & 9
For detailed specifications, refer to the Product Catalogue.
