Product Description

AKRON Electric

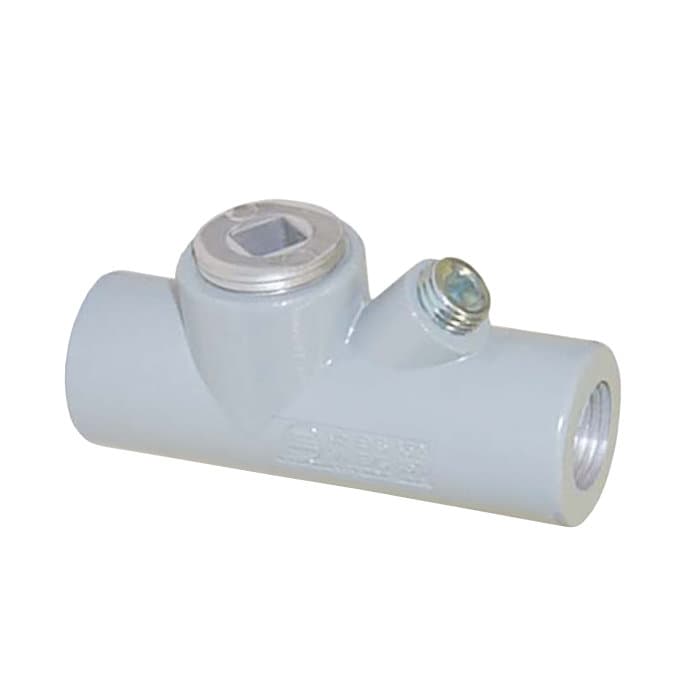

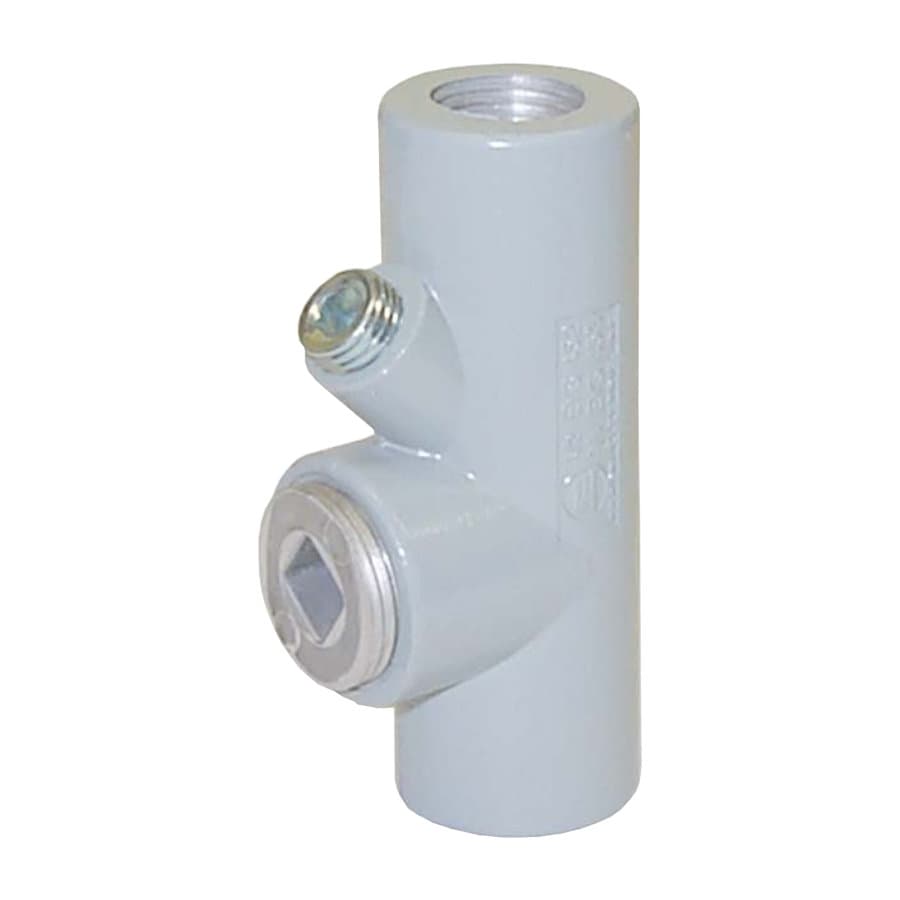

EYS Series

Hazardous Location Sealing Fitting

Explosion-proof sealing fitting

Description

  • Restricts the passage of gases, vapors, liquids, dust and flames from one portion of the electric installation to another at atmospheric pressure and normal ambient temperatures.
  • For use with rigid and IMC conduit
  • NPT threads for correct adjustment and sealed to insure ground continuity
  • Electrostatic powder coating to reinforce the natural endurance against corrosion
  • DIE CAST copper-free aluminum with porosity control produced at high pressure in permanent molds.
  • Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations
  • Required in Class I, Division 1 & 2 locations at the boundary where conduit leaves classified location.
  • Rain-tight construction

Prose

Available Sizes

The EYS Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.

Standards

Approvals

UL CLASSIFIED - Standard 886 -E208115

CSA Certified (Canada) - Standard C22.2 No. 30-M1984 - LR64264

Compliances

N.E.C. - Class. I, Div. 1 & 2 Groups A, B (Group A & B authorized only by CSA), C & D

Class. II, Div. 1 & 2 Groups E, F & G

Class. III, Div. 1 & 2

For detailed specifications, refer to the Product Catalogue.
