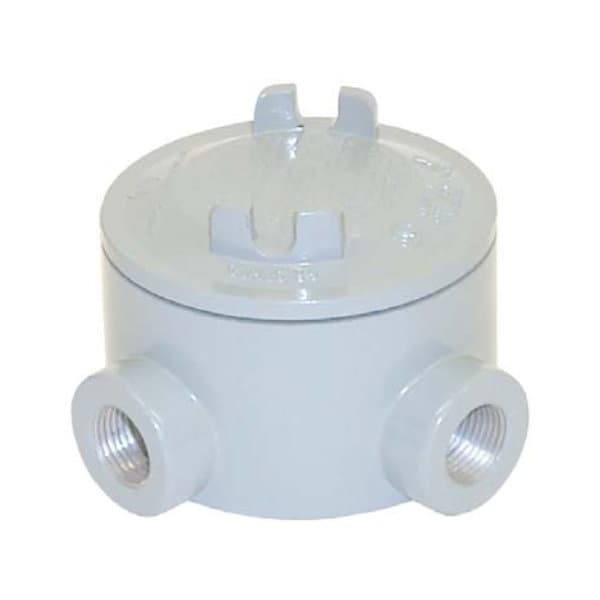

Product Description
Description
- Diecast Aluminum produced at high pressure in permanent molds
- Compressed Aluminum with porosity control 11 models with 1, 2, 3, 4 and 5 hubs
- Explosion-Proof of ethyl ether, ethylene, hydrogen*, butane, propane, methane, gasoline, etc.
- Provide access to conductors for maintenance and future system changes Acts as a pull and splice box
- Provides for change in conduit direction
- Electrostatic powder coating to reinforce the natural endurance against corrosion
- Smooth conduit stop in each hub to protect conductor insulation Ground Screw included
- O-Ring included to prevent humidity -Meets NEMA 4 requirements
- Threaded joint in body and cover are precision machined to allow internal gas to be dissipated and cooled
- Two mounting means for electrical fixtures Copper-free aluminum
- NPT threads for rigid conduit
- Mounting Strap available (optional)
Prose
Available Sizes
The GR Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.
Standards
- Approvals
UL CLASSIFIED - Standard 886 - E94590
CSA Certified (Canada) - Standard C22.2 No. 30-M1984 - LR64264
- Compliances
N.E.C. - Class. I, Div. 1 & 2 Groups B (authorized only by CSA), C & D
Class. II, Div. 1 & 2 Groups E, F & G
Class. III
NEMA 3, 4, 7 & 9
For detailed specifications, refer to the Product Catalogue.
