Product Description

AKRON Electric

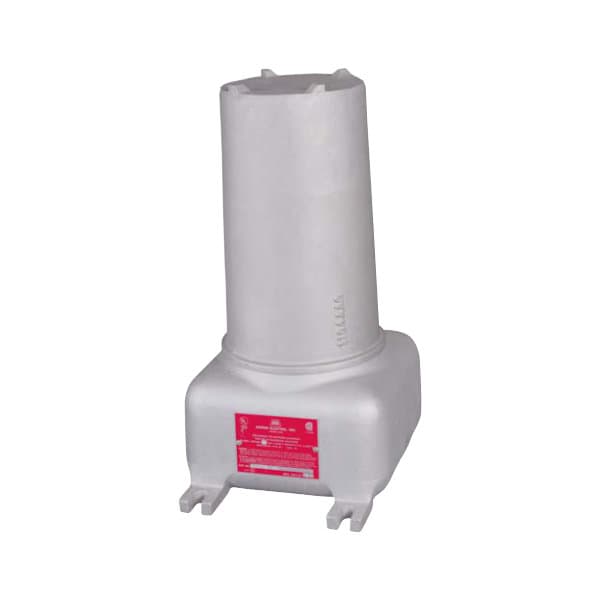

XJATD Series

Hazardous Location Junction Box

Explosion-proof threaded dome cover junction box

Description

  • Threaded opening design provides easy access to components
  • All enclosures are NEMA 4X with neoprene gasket for water tight applications
  • All enclosures are suitable for field drilling and tapping
  • Light weight corrosion resistant copper-free aluminum construction Attractive wheelabrate finish
  • Increased working depth inside enclosures ranging from 4 to 20 Available with flat mounting pan or optional L-shaped bracket
  • Optional viewing window on top of dome for high visibility of instruments in dome

Prose

Available Sizes

The XJATG Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.

Standards

Standards

Approvals

UL CLASSIFIED - Standard 886 -E94590

Compliances

N.E.C. - Class. I, Div. 1 & 2 Groups B, C & D

Class. II, Div. 1 & 2 Groups E, F & G Class. III

NEMA 3, 4X, 7 & 9

For detailed specifications, refer to the Product Catalogue.
