XJATS Series

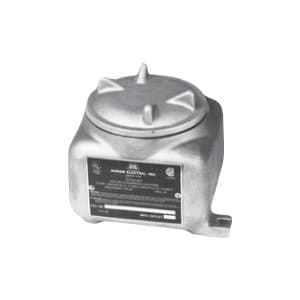

Hazardous Location Junction BoxExplosion-proof threaded solid-cover instrument housing
XJATS Series
Hazardous Location Junction BoxExplosion-proof threaded solid-cover instrument housing
Description
The XJATS Threaded Cover Solid-Cover Instrument Housing comes standard with an easy access solid NEMA 4X screw top cover
- Threaded opening design provides easy access to components. Integral cast mounting feet.
- All enclosures suitable for drilling and tapping.
- Cast from copper-free aluminum; max. 0.25% copper content.
- Stainless steel shot blast or sandblasted natural finish.
- Available with solid or glass covers.
- NEMA 4X O-Ring standard with all threaded enclosures.
- Atex certification (optional)
Prose
Available Sizes
The XJATS series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.
ATEX certification (Optional)
ATEX certification is available upon request.
- Exd IIC; IP 66 Rating; -20 C to +40 C;
- EN 50014 : 1997; EN 50018 : 2000
- Most current ATEX Directive pending
Materials
- Enclosure
Copper-free Aluminum (less than 0.25% copper content)
For detailed specifications, refer to the Product Catalogue.
Standards
- Approvals
UL CLASSIFIED - Standard 886
CSA Certified (Canada) - Standard C22.2 No. 30-M1986 & No. 25-1966
- Compliances
N.E.C. - Class. I, Div. 1 & 2, Groups B, C & D Class. II, Div. 1 & 2, Groups E, F & G Class. III, Enclosure 4X
NEMA 3, 4X, 7 & 9
For detailed specifications, refer to the Product Catalogue.
