Product Description

AKRON Electric

XJCTS Series

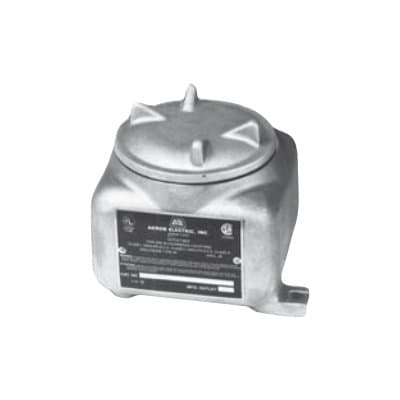

Hazardous Location Control Station

Explosion-proof solid-cover instrument housing

Description

  • Threaded opening design provides easy access to components and quick removal of cover
  • Integral cast mounting feet
  • All enclosures suitable for drilling and tapping
  • Cast from copper -free aluminum -max. 0.25% copper content Stainless steel shot blast finish
  • Solid cover
  • NEMA 4X O-Ring standard with all threaded enclosures Mounting Pan: Aluminum; Galvanized Steel or Phenolic Materials available upon request
  • Optional ATEX certification

Prose

Available Sizes

The XJCTS Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.

Materials

Materials

Enclosure

Copper-free Aluminum (less than 0.25% copper content)

For detailed specifications, refer to the Product Catalogue.

Standards

Standards

Approvals

UL CLASSIFIED - Standard 1203; File E139669

CSA Certified (Canada) - Standard C22.2-30 No.30-M1984 FM Class No. 3615

ATEX - Standards EN 50014-50018

Compliances

N.E.C. -Class. I, Div. 1 & 2, Groups B, C & D

Class. II, Div. 1 & 2, Groups E, F & G Class. III, Enclosure 4X

NEMA 3, 4X, 7 & 9

For detailed specifications, refer to the Product Catalogue.
