Product Description

AKRON Electric

XJIH Series

Hazardous Location Control Station

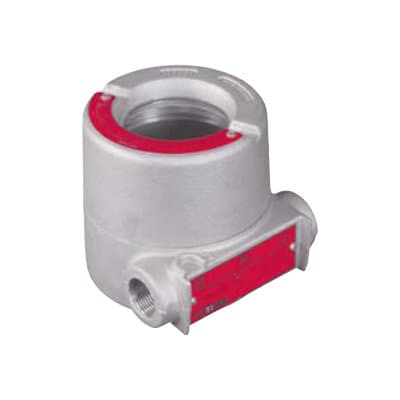

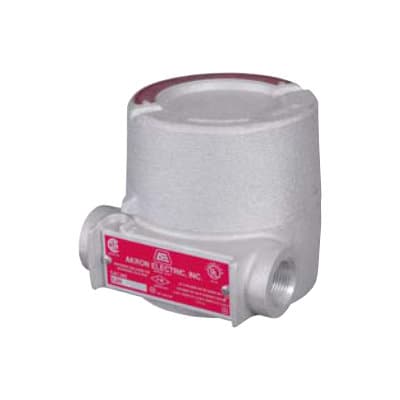

Explosion-proof instrument enclosure


  • All enclosures are NEMA 4X with neoprene gasket for water tight applications
  • Light-weight corrosion resistant copper-free aluminum construction with an attractive wheelabrate finish
  • Internal ground screw standard
  • Optional Mounting Straps available (Flat, Raised or Diamond Shape)
  • Extra large throat opening: 3-1/2 or 4 diameter; Large viewing lens cover: 2-5/8 or 3 diameter
  • Internal Mounting Boss for instrumentation installation, Din Rail, etc. Slotted groove for easy removal and tightening of cover
  • 3/4 offset feed through hubs offer maximum interior space and greater working area
  • E1 /E2 -Corrosion-Proof Epoxy Coating available upon request
  • Raised donut mounting surface with increased surface area for drilling and tapping
  • Third Hub available for 1/2 or 3/4 NPT Conduit Entry


Available Sizes

The XJIH Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.

ATEX Certification (Optional)

ATEX certification is available upon request. Certain features are added to the XJIH Instrument Housing Line if ATEX Certification is required:

  • External Ground Screw
  • External Set Screw

Third Hub Tapping (Optional)

A Third Hub can be drilled and tapped in the Instrument Housings. This is an optional adder for the Instrument Housing Line and the size of NPT holes that can be drilled and tapped include 1/2 NPT or 3/4 NPT (Please Specify).



Copper-free Aluminum (less than 0.25% copper content)

For detailed specifications, refer to the Product Catalogue.



UL CLASSIFIED - Standard 1203, File No. E139669

CSA Certified (Canada) - Standard C22.2-30M1984 FM Class No. 3615



N.E.C. -Class. I, Div. 1 & 2 Groups B, C & D

Class. II, Div. 1 & 2 Groups E, F & G Class. III

NEMA 7 & 9 (Optional 3, 4X)

For detailed specifications, refer to the Product Catalogue.
