Product Description

AKRON Electric

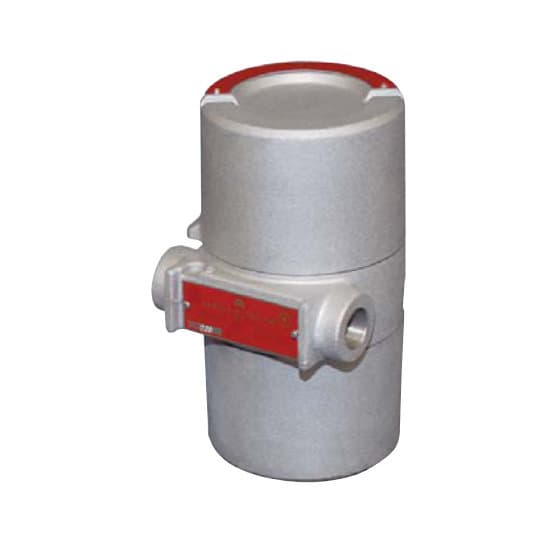

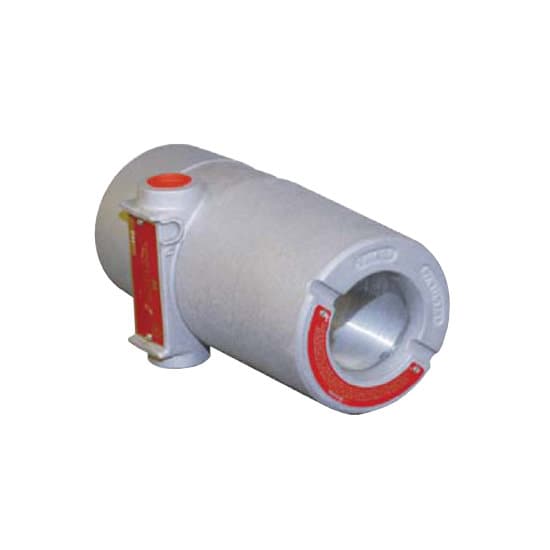

XJIHD Series

Hazardous Location Control Station

Explosion-proof instrument enclosure


  • All enclosures are NEMA 4X with neoprene gasket for water tight applications
  • Light weight corrosion resistant copper-free aluminum construction with an attractive wheelabrate finish
  • Internal ground screw standard
  • Extra large throat opening: 3-1/2 or 4 diameter
  • Slotted groove for easy removal and tightening of cover (2) 3/4 NPT Conduit Entries standard
  • Large volume of internal space for instrument or control requirements
  • 1/2 thick barrier wall with drilling and tapping capability for pass through holes (UL /CSA version only)
  • E1 /E2 -Corrosion-Proof Epoxy Coating available upon request Specify 1/2 to 3/4 NPT Reducer Bushings, if required


Available Sizes

The XJIHD Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.

ATEX Certification (Optional)

ATEX certification is available upon request. Certain features are added to the XJIH Instrument Housing Line if ATEX Certification is required:

  • External Ground Screw
  • External Set Screw



Copper-free Aluminum (less than 0.25% copper content)

For detailed specifications, refer to the Product Catalogue.



UL CLASSIFIED - Standard 1203; File E139669

CSA Certified (Canada) - Standard C22.2-30 No.30-M1984 FM Class No. 3615

ATEX - Standards EN 50014-50018


N.E.C. -Class. I, Div. 1 & 2 Groups B, C & D

Class. II, Div. 1 & 2 Groups E, F & G Class. III

NEMA 7 & 9 (Optional 3, 4X)

For detailed specifications, refer to the Product Catalogue.
