Product Description

AKRON Electric

XM Series

Hazardous Location Mini Pilot Device

Explosion-proof mini pilot


  • LED bulb with 100,000 hours operating life under normal conditions
  • EXTRA bright LED bulb is five times brighter than our competitors
  • Glass tube construction with ground outside edge allows for wider viewing angle of up to 130 degrees
  • Universal bulb for AC and DC applications Nema 4X standard construction included
  • Available in three lengths; extra short, short and long Manufactured in our factory for quick delivery
  • Certified for 1 center to center spacing in our CXI Series (Groups C & D)
  • Shunt Resistor Bulbs available-consult factory if leakage concerns exist
  • Uni-Body one piece black anodized body, 3/8-16 UNC thread size and lens Furnished with 8 flexible 18 gauge wire leads
  • LED bulb available voltages of 12V, 24V, 120V (AC/DC)
  • Colors available: Amber, Blue, Green, Red and White
  • Lens diameter is 3/16

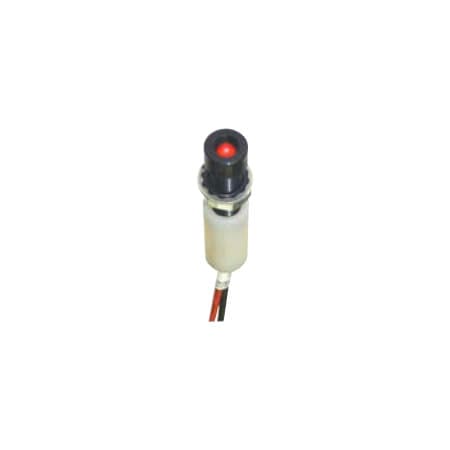

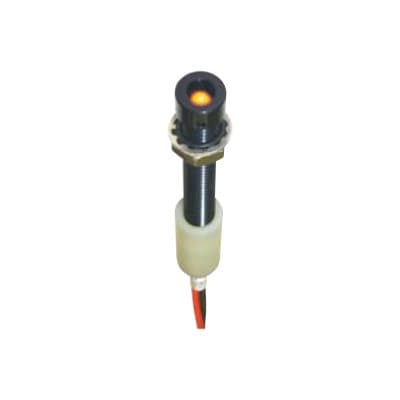

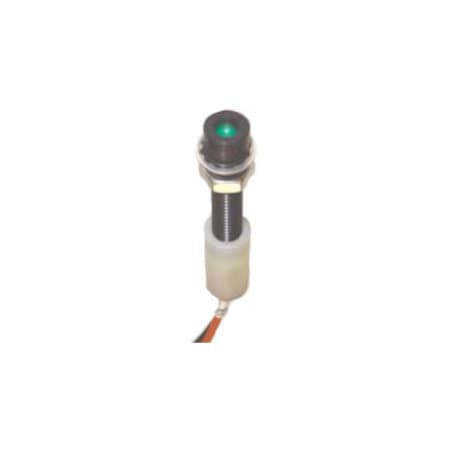

  • Body Type Sizes: extra short, short and long
  • Long-enclosure wall or cover thickness 1-13/16 max.
  • Short-enclosure wall or cover thickness 1-5/16 max.
  • Extra short-enclosure wall or cover thickness of 9/16 max.



UL CLASSIFIED - Standard 698 - E203605

cUL - Standard C22.2 - No. 30 -E203605


N.E.C. - Class. I, Div. 1 & 2 Groups B, C & D

Class. II, Div. 1 & 2 Groups E, F & G

Class. III

NEMA 4, 4X, 7 & 9

For detailed specifications, refer to the Product Catalogue.
