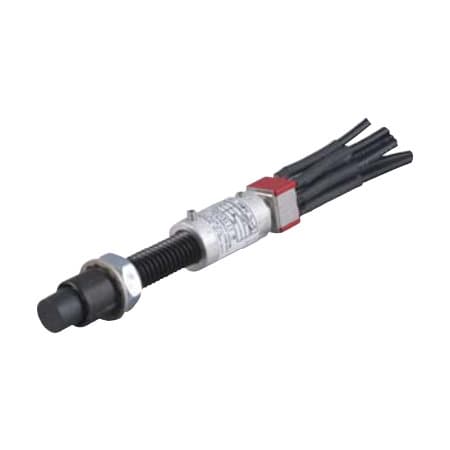

Product Description
Description
- Reduce size of control enclosure requirements in hazardous environments
- Mount on 1 center to center vs. standard operators requiring 2-1/2
- No special enclosures required
- Can be installed in most Akron Electric Enclosures
- Mounts in 3/8 -16 UNC threaded holes Black anodized teflon coated bodies Stainless Steel actuator shaft
- Plastic buttons available in yellow, green, red and black Insulation resistance 1,000 megohm minimum
- Furnished with contact block having 8 wire leads (c/f for custom lengths) XMPB 1, 2 & 3 rated 6 amp @ 120 VAC, 3 amp @ 250 VAC XMPB 4 rated 1 amp @ 120 VAC
- Body Type Sizes: short and long
- Long-enclosure wall or cover thickness 1-9/16 max
- Short-enclosure wall or cover thickness 1 max
Standards
- Approvals
UL CLASSIFIED - Standard 698 -E203605
cUL - Standard C22.2 - No. 30 - E203605
CSA - Standard C22.2 - No. 30-1986 - LR86146
- Compliances
N.E.C. -Class. I, Div. 1 & 2 Groups B, C & D
Class. II, Div. 1 & 2 Groups E, F & G
Class. III
NEMA 4, 4X, 7 & 9
For detailed specifications, refer to the Product Catalogue.
