Product Description

AKRON Electric

XMPL Series

Hazardous Location Mini Pilot Device

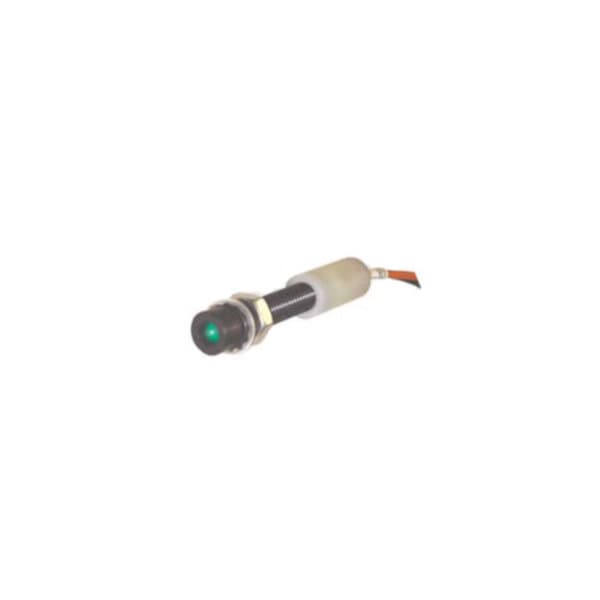

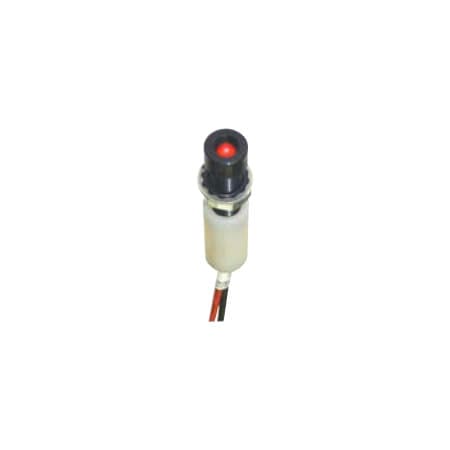

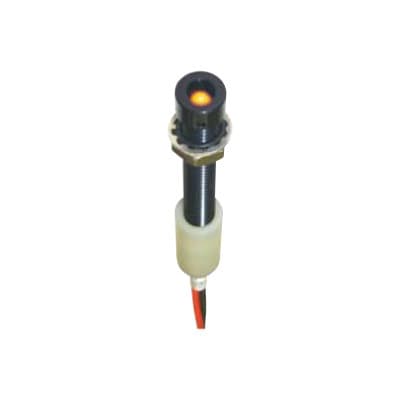

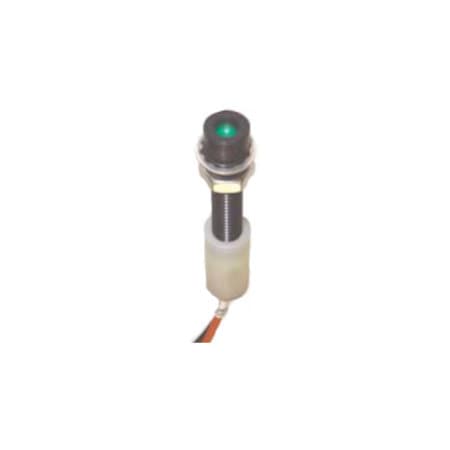

Explosion-proof mini pilot light


  • LED bulb with 100,000 hours operating life under normal conditions EXTRA bright LED bulb is five times brighter than our competitors Glass tube construction with ground outside edge allows for wider viewing angle of up to 130 degrees
  • Universal bulb for AC and DC applications Nema 4X standard construction included
  • Available in three lengths; extra short, short and long Manufactured in our factory for quick delivery
  • Certified for 1 center to center spacing in our CXI Series (Groups C & D)
  • Shunt Resistor Bulbs available-consult factory if leakage concerns exist
  • Uni-Body one piece black anodized body, 3/8-16 UNC thread size and lens Furnished with 8 flexible 18 gauge wire leads
  • LED bulb available voltages of 12V, 24V, 120V (AC/DC)
  • Colors available: Amber, Blue, Green, Red and White
  • Lens diameter is 3/16
  • Body Type Sizes: extra short, short and long
  • Long-enclosure wall or cover thickness 1-13/16 max.
  • Short-enclosure wall or cover thickness 1-5/16 max.
  • Extra short-enclosure wall or cover thickness of 9/16 max.



UL CLASSIFIED - Standard 698 - E203605

cUL - Standard C22.2 - No. 30 - E203605


N.E.C. - Class. I, Div. 1 & 2 Groups B, C & D

Class. II, Div. 1 & 2 Groups E, F & G

Class. III

NEMA 4, 4X, 7 & 9

For detailed specifications, refer to the Product Catalogue.
