Product Description

AKRON Electric

XMR Series

Hazardous Location Mini Pilot Device

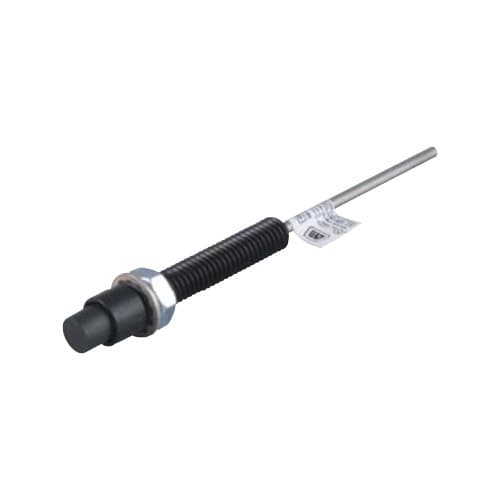

Explosion-proof mini reset button


  • Reduce size of control enclosure requirements in hazardous environments
  • Mount on 1 center to center vs. standard operators requiring 2-1/2
  • No special enclosures required
  • Can be installed in most Akron Electric Enclosures
  • High impact plastic buttons available in red, black, green and yellow Stainless Steel actuator shaft can be cut to length
  • Black anodized, teflon-coated bodies
  • Mounts in 3/8 -16 UNC threaded holes Body Type Sizes: short and long
  • Short-enclosure wall or cover thickness 1-3/16 max
  • Long-enclosure wall or cover thickness 1-3/4 max
  • ATEX certification (optional)


ATEX Certification (Optional)

ATEX certification is available upon request.



UL CLASSIFIED - Standard 698 - E203605

CSA - Standard C22.2 - No. LR86146


N.E.C. - Class. I, Div. 1 & 2 Groups B, C & D

Class. II, Div. 1 & 2 Groups E, F & G

Class. III

NEMA 4, 4X, 7 & 9

For detailed specifications, refer to the Product Catalogue.
