Product Description

AKRON Electric

XMSS Series

Hazardous Location Mini Pilot Device

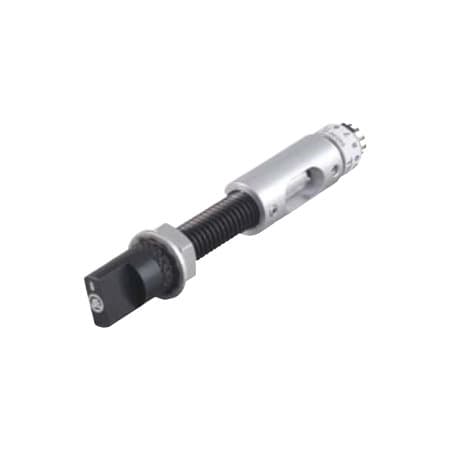

Explosion-proof mini selector switch

Description

  • Reduce size of control enclosure requirements in hazardous environments
  • Mount on 1 center to center vs. standard operators requiring 2-1/2 No special enclosures required
  • Can be installed in most Akron Electric Enclosures
  • 2 through 12 positions with 1, 2 & 4 poles available
  • Black Anodized bodies
  • 3/8 -16 UNC thread size
  • NEMA 4X standard Construction
  • Stainless Steel actuator shaft
  • Body Type Sizes: short and long
  • Short-enclosure wall or cover thickness 3/4 max
  • Long-enclosure wall or cover thickness 2 max

Standards

Approvals

UL CLASSIFIED - Standard 698 - E203605

cUL - Standard C22.2 - No. 30 - E203605

Compliances

N.E.C. - Class. I, Div. 1 & 2 Groups B, C & D

Class. II, Div. 1 & 2 Groups E, F & G

Class. III

NEMA 4, 4X, 7 & 9

For detailed specifications, refer to the Product Catalogue.
