Product Description
AKRON Electric
XP2, XP3, XPK & XPK3 Series

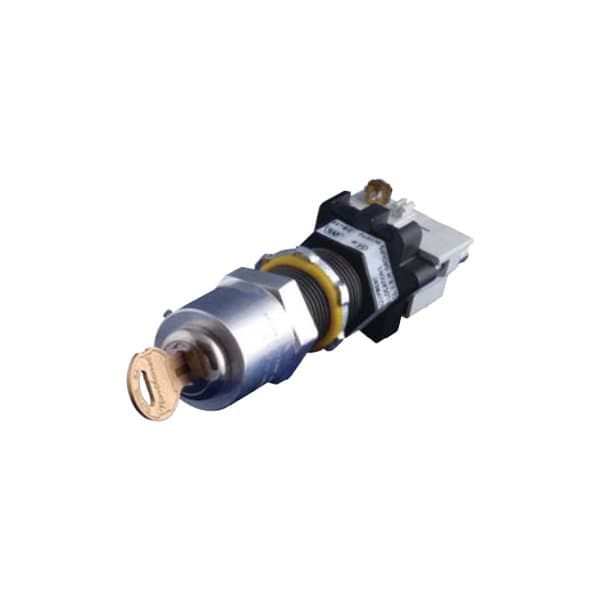

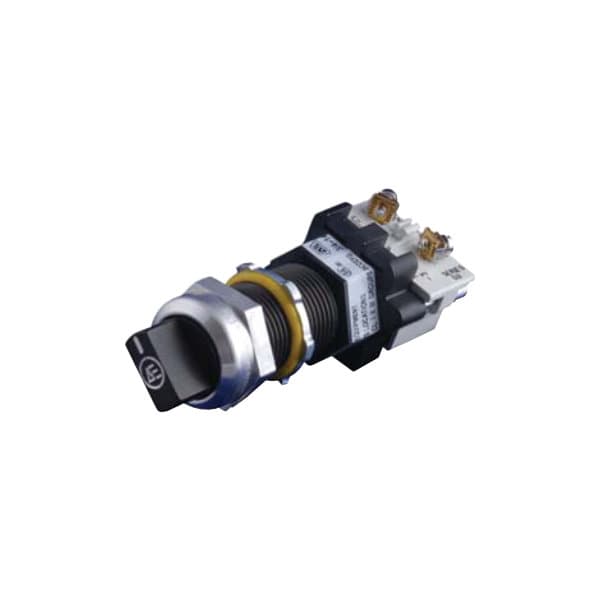

Hazardous Location Selector SwitchExplosion-proof selector switches
AKRON Electric
XP2, XP3, XPK & XPK3 Series
Hazardous Location Selector SwitchExplosion-proof selector switches
Description
- Operator bodies are black anodized & teflon impregnated.
- Operating Shafts are stainless steel. 3/4-14 NPSM threaded body size
- Long Series: Accommodates up to 2-1/2 thick enclosure wall thickness.
- Short Series: Accommodates up to 1 thick enclosure wall thickness.
- Explosion-Proof Operators are suitable for panel or surface mount applications.
- Mushroom Push Buttons are 1-1/2 Diameter Aluminum
- Jumbo 2-1/2 Dia. Aluminum Red Mushroom Button available
- Push-Pull Operator available 2 or 3 position
Standards
- Approvals
UL 698 Industrial Control Equipment in Hazardous (Classified) Locations.
UL 1203 Explosion-Proof and Dust-Ignition-Proof Electrical Equipment for Use in Hazardous (Classified) Locations.
CSA C22.2 No. 30-LR86146 Explosion-Proof Enclosures for use in Class I Hazardous locations.
- Compliances
CLASS I, Div 1 & 2, GROUPS B, C & D
CLASS II, Div 1 & 2, GROUPS E, F & G
CLASS III
NEMA TYPE 4, 4X, 7 & 9
For detailed specifications, refer to the Product Catalogue.
