XPB & XPPP Series

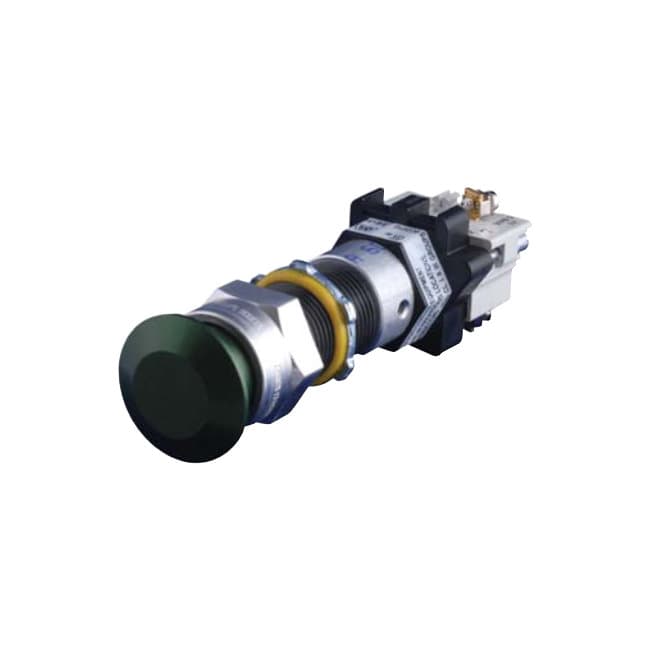

Explosion-proof illuminated push buttons

AKRON Electric

Explosion-proof illuminated push buttons

Operator bodies are black anodized & teflon-impregnated. Operator shafts are stainless steel.
3/4-14 NPSM threaded body size.
Explosion-proof operators are suitable for panel or
surface mount applications
Long Series: accommodates up to 2-1/2 thick enclosure wall thickness
Short Series: accommodates up to 1 thick enclosure wall thickness

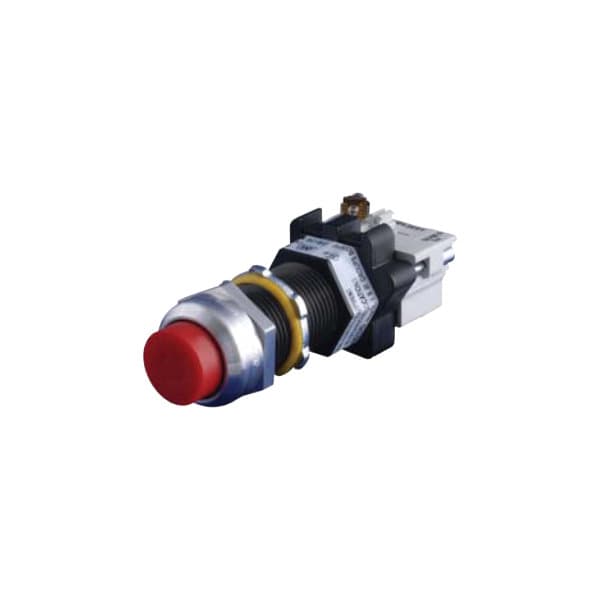

Momentary pushbuttons are available in flush and extended versions.
Momentary pushbuttons are molded thermoplastic protected by a machined aluminum guard.

Standards

Approvals: UL 698 Industrial Control Equipment for use in hazardous (Classified) locations.

UL 1203 Explosion-Proof and Dust-Ignition Proof Electrical Equipment for use in hazardous (Classified) locations.

CSA C22.2 No. 30-LR86146 Explosion-Proof Enclosures for use in Class I Hazardous locations.
Compliances: CLASS I, Div 1 & 2, GROUPS B, C & D

CLASS II, Div 1 & 2, GROUPS E, F & G

CLASS III

NEMA TYPE 4, 4X, 7 & 9
For detailed specifications, refer to the Product Catalogue.
