Product Description

AKRON Electric

XPBA, XPBB, XPBC, XPBD & XPBE Series

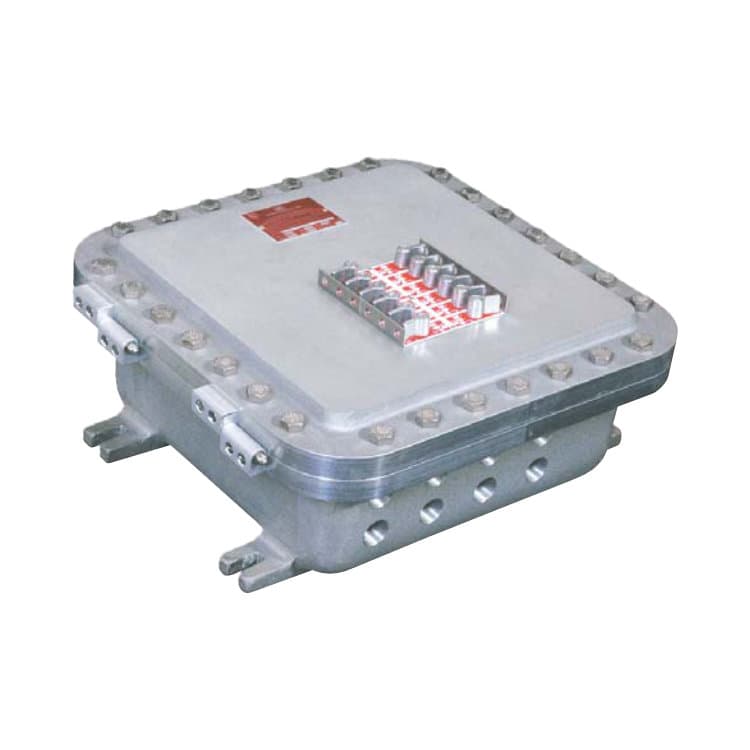

Hazardous Location Panel Board

Explosion-proof circuit breaker

AKRON XPBA, XPBB, XPBC, XPBD & XPBE Series

Description

  • Non-Factory Sealed /Flat Cover Design
  • 100 Amp Main Lug Only /225 Amp Main Lug Only
  • 100 Amp Main Breaker /225 Amp Main Breaker
  • Circuit Breaker Handles Standard
  • Standard Conduit Entries
  • XPPB Close-up Plug for C10 handle conduit entries (optional)
  • R3 Close-up Plugs for C1 & C2 -3/4 NPSM entries (optional)
  • Breather & Drain Standard
  • Available with or without interiors /chassis
  • 10 KAIC Enclosure Ratings
  • NEMA 4 O-Ring Gasket for outdoor /wash-down applications
  • 1 or 3 Phases Standard
  • Top or bottom feed panel availability
  • Branch handles pad-lockable in on or off position All
  • Breaker Handles are spring-loaded
  • GFI Breakers available
  • Consult us for: External Epoxy Coating /Custom Designs
  • N7 Phenolic Plate and E8 Custom mounting bracket standard
  • Spare plugs and handles available upon request for future use

Prose

Available Sizes

The XPBA, XPBB, XPBC, XPBD & XPBE Series are available in a number of different sizes to fit all types of hazardous locations. Please see the Product Catalogue for available sizes and detailed specifications.

Applications

Hazardous such as:

  • Petroleum Refineries or Plants
  • Wastewater Treatment Facilities
  • Areas where harsh gases, chemicals, or vapors are present

Used to control lighting, heating or motor circuit application using a circuit system. Protect against short circuits and to provide a means for disconnects. Indoor & outdoor applications are applicable

Materials

Materials

Body & Cover

Copper-free Aluminum (less than 0.25% copper content)

Standard Electrical Components

Cutler Hammer Panels

Cover Bolts

E3 Stainless Steel Triple Lead Captive Quick Thread Bolts (Standard)

Hinges

Aluminum with Stainless Steel Hardware

Breaker Handles

Copper-Free Cast Aluminum

NEMA 4 O-Ring

Buna-N (Standard)

Breather/Drain (BD) (Optional)

2BD Stainless Steel (Standard)

For detailed specifications, refer to the Product Catalogue.

Standards

Standards

Approvals

UL - Standard 1203 -No. E139669

cUL - Standard C22.2 -No. 30-M1986 & No. 25-1966

Compliances

CL. I, Div. 1 & 2 Groups B, C & D CL. II, Div. 1 & 2 Groups E, F & G CL. III

NEMA 3, 4X, 7 & 9

For detailed specifications, refer to the Product Catalogue.
