Product Description
Description
- Operator bodies are black anodized & teflon impregnated.
- 3/4-14 NPSM threaded body size.

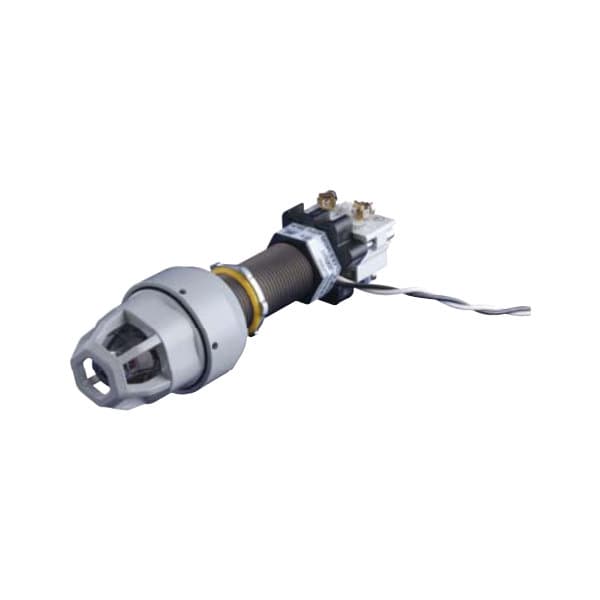

- Explosion-Proof Pilot Lights are suitable for panel or surface mount applications.
- Long Series: Accommodates up to 2-1/2 thick enclosure wall thickness.
- Short Series: Accommodates up to 1-1/2 thick enclosure wall thickness.
- Standard 6 flexible leads for connection to contact blocks.
- 1 N.O. /1 N.C. Contact Block standard unless otherwise specified
- Lens cap guard comes standard with a light gray powder coat finish.
- Standard sealed construction can be re-lamped from the front by removal of the lens guard. (Disconnect power prior to performing this procedure).
- XP Pilot Light Series is equipped with bayonet receptacle bases and your choice of 12, 24, 48, 120 or 240 volt LED lamps.
- LED lamps have an operating life upwards of 100,000 hours @ 25 Deg. C ambient temperature. Specify voltage desired.
- Available light bulb colors are Red, White, Blue, Green and Amber.
Standards
- Approvals
UL 698 Industrial Control Equipment in Hazardous (Classified) Locations.
UL 1203 Explosion-Proof and Dust-Ignition-Proof Electrical Equipment for Use in Hazardous (Classified) Locations.
CSA 22.2 No. 30-LR86146 Explosion-Proof Electrical Equipment for use in Hazardous Locations.
- Compliances
CLASS I, Div 1 & 2, GROUPS B, C & D
CLASS II, Div 1 & 2, GROUPS E, F & G
CLASS III
NEMA TYPE 4, 4X, 7 & 9
For detailed specifications, refer to the Product Catalogue.
