Product Description

AKRON Electric

XPL Series

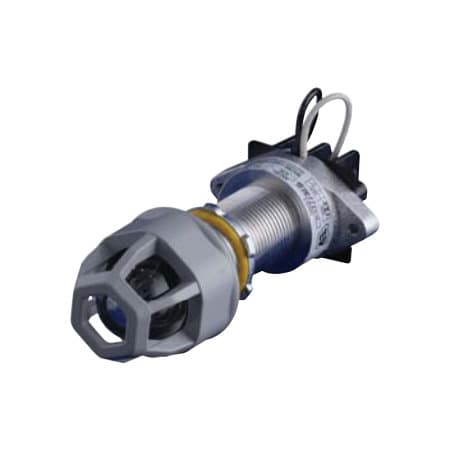

Hazardous Location Pilot Light

Explosion-proof pilot lights

Description

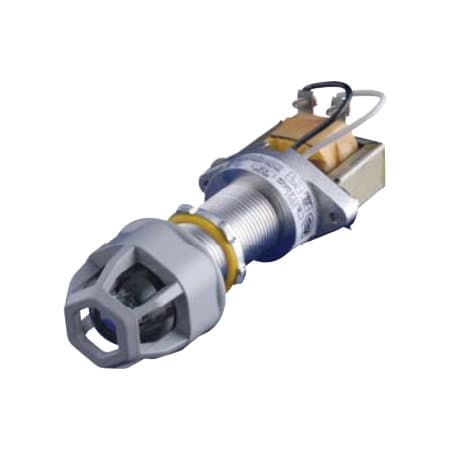

  • XPL Transformer Series is equipped with bayonet base receptacles and 12 volt LED lamps
  • 3/4-14 NPSM threaded body size.
  • Explosion-Proof Pilot Lights are suitable for panel or surface mount applications.
  • Long Series: Accommodates up to 2-1/2 thick enclosure wall thickness.
  • Short Series: Accommodates up to 1-1/2 thick enclosure wall thickness.
  • Standard 8 flexible leads for connection to contact blocks.
  • Lens cap guard comes standard with a light gray powder coat finish.
  • Standard sealed construction can be re-lamped from the front by removal of the lens guard. (Disconnect all power prior to performing this procedure).

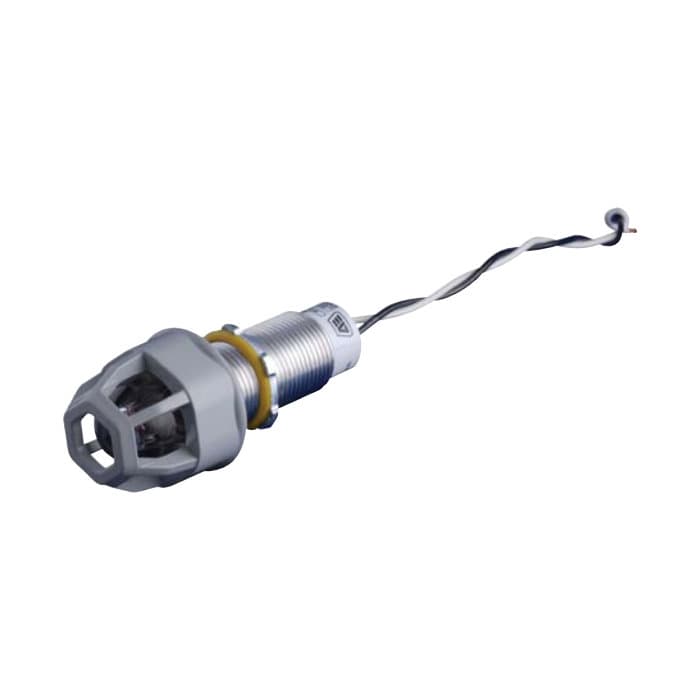

  • XP Pilot Light Series is equipped with bayonet receptacle bases and your choice of 12, 24, 48, 120 or 240 volt LED lamps.
  • LED lamps have an operating life upwards of 100,000 hours @ 25 Deg. C ambient temperature. Specify voltage desired.
  • Available light bulb colors are Red, White, Blue, Green and Amber.

Standards

Approvals

UL 698 Industrial Control Equipment in Hazardous (Classified) Locations.

UL 1203 Explosion-Proof and Dust-Ignition-Proof Electrical Equipment for Use in Hazardous (Classified) Locations.

CSA 22.2 No. 30-LR86146 Explosion-Proof Electrical Equipment for use in Hazardous Locations.

Compliances

CLASS I, Div 1 & 2, GROUPS B, C & D

CLASS II, Div 1 & 2, GROUPS E, F & G

CLASS III

NEMA TYPE 4, 4X, 7 & 9

For detailed specifications, refer to the Product Catalogue.
