AKRON Electric

XPPTT Series

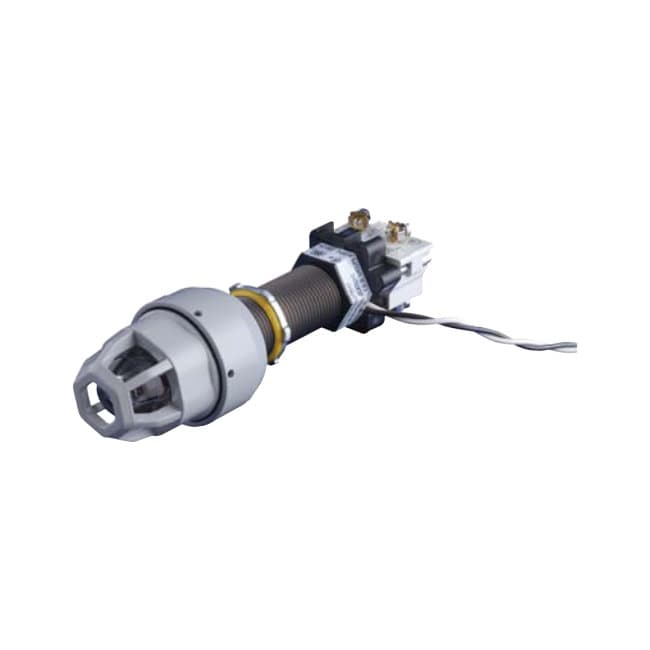

Explosion-proof illuminated push-to-test buttons

AKRON Electric

Explosion-proof illuminated push-to-test buttons

Operator bodies are black anodized & teflon impregnated.
3/4-14 NPSM threaded body size.
Explosion-Proof Pilot Lights are suitable for panel or surface mount applications.
Long Series: Accommodates up to 2-1/2 thick enclosure wall thickness.
Short Series: Accommodates up to 1-1/2 thick enclosure wall thickness.
Lens cap guard comes standard with a light gray powder coat finish.
Standard sealed construction can be re-lamped from the front by removal of the lens guard. (Disconnect power before performing this procedure).
XP Pilot Light Series is equipped with bayonet receptacle bases and your choice of 12, 24, 48, 120 or 240 volt LED lamps.
LED lamps have an operating life upwards of 100,000 hours @ 25 Deg. C ambient temperature. Specify voltage desired.
Available light bulb colors are Red, White, Blue, Green and Amber.

Standards

Approvals: UL 698 Industrial Control Equipment for use in hazardous (Classified) locations.

UL 1203 Explosion-Proof and Dust-Ignition Proof Electrical Equipment for use in hazardous (Classified) locations.

CSA C22.2 No. 30-LR86146 Explosion-Proof Enclosures for use in Class I Hazardous locations.
Compliances: CLASS I, Div 1 & 2, GROUPS B, C & D

CLASS II, Div 1 & 2, GROUPS E, F & G

CLASS III

NEMA TYPE 4, 4X, 7 & 9
For detailed specifications, refer to the Product Catalogue.
