Product Description

AKRON Electric

XRB Series

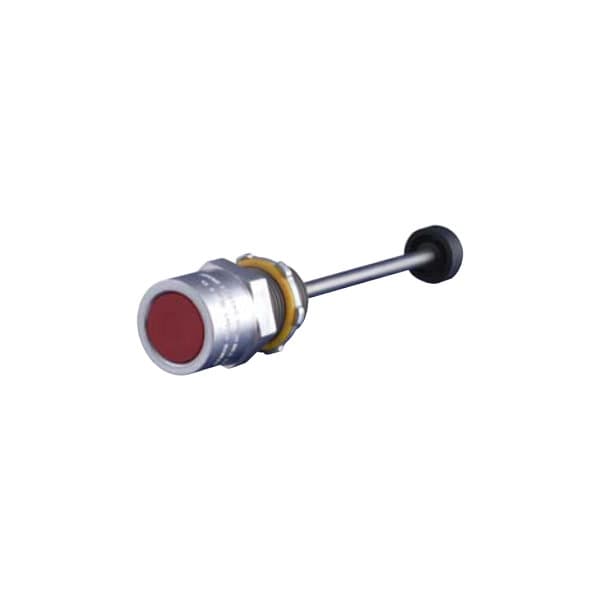

Hazardous Location Reset Push Button

Explosion-proof reset push buttons

Description

  • Stainless steel shaft can be easily cut to required length.
  • Operator bodies are black anodized & teflon impregnated.
  • 3/4-14 NPSM threaded body size Explosion-Proof Resets are suitable for panel or surface mount applications.
  • Long Series: Accommodates up to 1-7/16 thick enclosure wall thickness.
  • Short Series: Accommodates up to 3/4 thick enclosure wall thickness.
  • NEMA 4 Sealing Locknut (standard)
  • Thermoplastic button avail. in Red, Green, Blue, Yellow or Black.

Standards

Approvals

UL 698 Industrial Control Equipment in Hazardous (Classified) Locations.

UL 1203 Explosion-Proof and Dust-Ignition-Proof Electrical Equipment for Use in Hazardous (Classified) Locations.

CSA C22.2 No. 30-LR86146 Explosion-Proof Enclosures for use in Class I Hazardous locations.

Compliances

CLASS I, Div 1 & 2, GROUPS B, C & D

CLASS II, Div 1 & 2, GROUPS E, F & G

CLASS III

NEMA TYPE 4, 4X, 7 & 9

For detailed specifications, refer to the Product Catalogue.
