Product Description

Ben

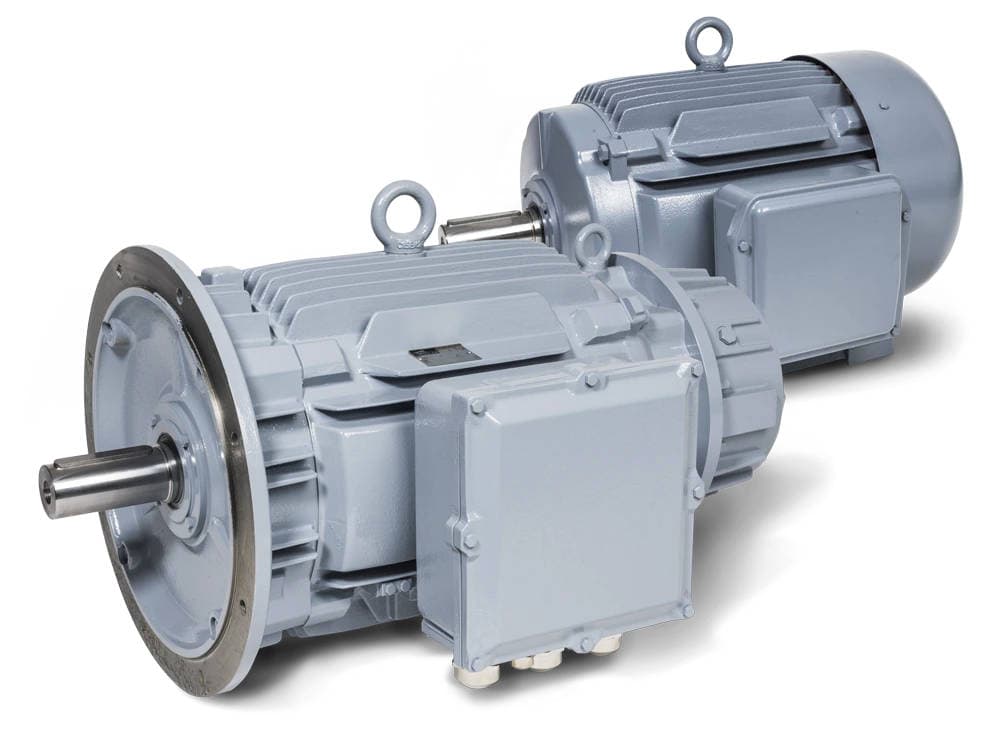

Surface Cooled Motors

Marine Duty Custom Motor

Description

Our surface-cooled motors (IP54 to IP68) impress their durability and robustness based on our high quality demands on us and our products. Application-optimized designs with up to four speed speeds or in slip ring design are not a problem for us. We design the motors that they are suitable for your special requirements.

Prose

Additional options

  • Tropical and humidity insulation
  • Thermal monitoring device, stand still heater
  • Brakes, encoder, special mounting dimension
  • Suitable for operation on frequency inverter
  • Shock-proof motor design
  • Strengthened /current insulated bearing
  • Thermal/mechanical monitoring devices
  • Explosion protected motor Coating standard according DIN EN ISO 12944 (2), corrosivity category C5-M.

Specifications

Frame size

71 - 450

Power

0,25 - 500 kW (for short-term duty up to 1300 kW)

Voltage

up to 690 V

Frequency

50 or 60 Hz (or according customer's specifications)

Protection class

up to IP68

Mounting

IMB3, IMB5, IMB35 and others acc. to DIN EN 60034-7

Cooling method

IC410, IC411, IC416, IC71W (water-cooled) and others acc. DIN EN 60034-6

Classification societies

DNVGL, BV, ABS, LRS, RS, KR, CCS and others
