Product Description

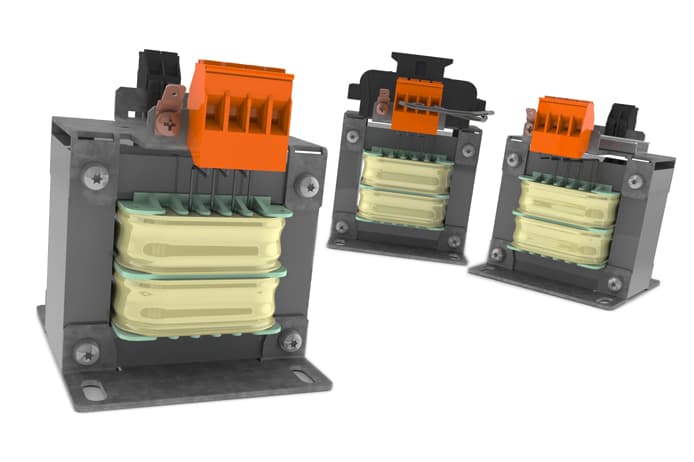

CT Series
Power TransformerBase plate, PRI 2 x 240 Vac, 600 Vac, SEC 24 Vac, 120 Vac, 50 - 2,500 VA
CT Series
Power TransformerBase plate, PRI 2 x 240 Vac, 600 Vac, SEC 24 Vac, 120 Vac, 50 - 2,500 VA
Description
- Contact protected screw connection terminals
- Up to 2,500 VA
- Fused versions available
- Versions with DIN rail for additional components available
- Very good corrosion protection and low noise thanks to BLOCK IMPEX vacuum impregnation
- Jumpers included for primary voltage selection
Prose
Power Transformers
Power transformers with galvanic isolation can be used, e.g., to supply reliable low contact voltage to FELV circuits. In accordance with EN 61558, power transformers provide basic isolation between the primary and secondary sides at a minimum. This makes them ideal for creating new independent networks. BLOCK's standard range includes power ratings of between 0.5 VA and 2,500 VA.
- Basic isolation in accordance with EN 61558
- Power output: 0.5 VA to 2,500 VA
Applications
As a separating transformer for adjustment of the voltage and simple electrical isolation.
Specifications
- Rated Power
50 - 2,500 VA
- Efficiency
Up to 95 %
- Maximum Ambient Temperature
40 °C
- Insulation
Class B
- Degree of Protection
IP 00
- Rated Output Voltage
24 V, 120 V
- Rated Input Voltage
2 x 240 V or 600 V
- Standards
EN 61558 part 1 with part 2-1, UL 5085-1/-2;2:2, CSA 22.2 No. 66
- Approvals
UL 5085-1/-2, CSA 22.2 No.66, EAC
Specifications vary between configurations. Refer to the Configurations below for more information and links to the manufacturer's website.
