Product Description
Description

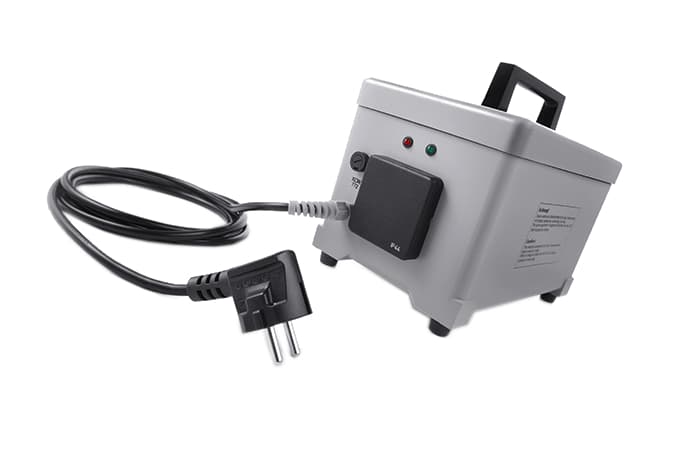

- Carry handle, mains cable with safety plug, socket NEMA5-15 (USA) for portable application
- Very good moisture protection and low noise thanks to XtraDenseFill resin encapsulation
- Very high efficiency
- Integrated short-circuit and overload protection
- Electronic potential monitoring by not connecting the output voltage until the protected contact plug is inserted correctly
Prose
Autotransformers
Autotransformers are the efficient and ideal solution for minor voltage adjustments. Compact designs can be provided depending on the voltage difference. Autotransformers feature lower losses compared with isolating transformers with the same power rating. The transformers without galvanic isolation also feature inverse operation. BLOCK's standard range features power outputs of between 150 VA and 250,000 VA.
- Efficient solution for minor voltage adjustments
- Inverse operation possible
- Power output: 250 VA to 250,000 VA
Applications
Autotransformer for mobile use for the adjustment of the voltage in 230 Vac networks to 110 Vac equipment when no electrical isolation is required. The specified protection class is only guaranteed if a plug with at least the protection class of the device is used.
Specifications
- Rated Power
1,000 VA
- Efficiency
96 %
- Maximum Ambient Temperature
40 °C
- Insulation
Class A
- Degree of Protection
IP 22
- Rated Output Voltage
110 Vac
- Rated Input Voltage
230 Vac
- Rated Frequency
50 - 60 Hz
- Standards
VDE 0570 Teil 2-13, DIN EN 61558-2-13, EN 61558-2-13, IEC 61558-2-13
Specifications vary between configurations. Refer to the Configurations below for more information and links to the manufacturer's website.
