Product Description
EL Series

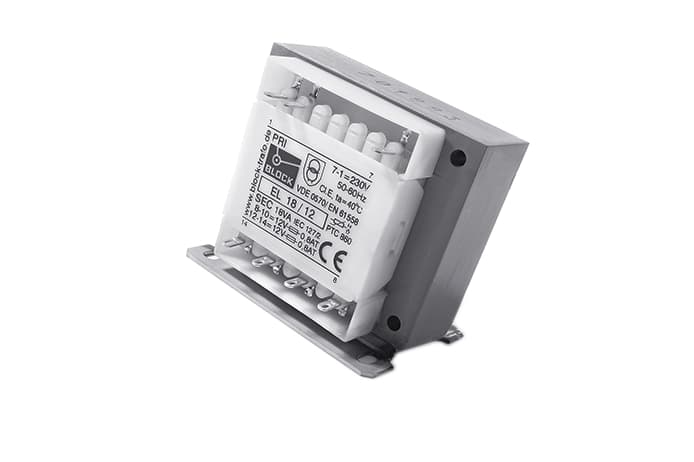

Safety Isolating TransformerBase plate, PRI 230 Vac, SEC 2 x 6 - 2 x 24 Vac, 7.5 - 100 VA
EL Series
Safety Isolating TransformerBase plate, PRI 230 Vac, SEC 2 x 6 - 2 x 24 Vac, 7.5 - 100 VA
Description
- Very good corrosion protection and low noise thanks to BLOCK IMPEX vacuum impregnation
- Solder tab for free wiring
- Simple mounting thanks to robust metal footplate with oval slots
Prose
Safety Transformers
Safety transformers with galvanic isolation provide a reliable supply to power circuits with the safety measures “protective separation” or “protection through shutdown”. Double or reinforced isolation between the primary and secondary sides protects SELV and PELV circuits. Safety transformers provide safety extra low voltages below 50 Vac or 120 Vdc. BLOCK's standard range includes power ratings of between 0.5 VA and 2,500 VA.
- Protection for SELV and PELV circuits
- For safety extra low voltages below 50 Vac or 120 Vdc
- Power output: 0.5 VA to 2,500 VA
Specifications
- Insulation
Class E
- Efficiency
Up to 88 %
- Degree of Protection
IP 00
- Rated Output Voltage
2 x 6 - 2 x 18 Vac
- Rated Power
7.5 - 100 VA
- Rated Input Voltage
230 Vac
- Maximum Ambient Temperature
40 °C
- Standards
VDE 0570 Part 2-6, DIN EN 61558-2-6, EN 61558-2-6, IEC 61558-2-6
Specifications vary between configurations. Refer to the Configurations below for more information and links to the manufacturer's website.
