Product Description

BLOCK

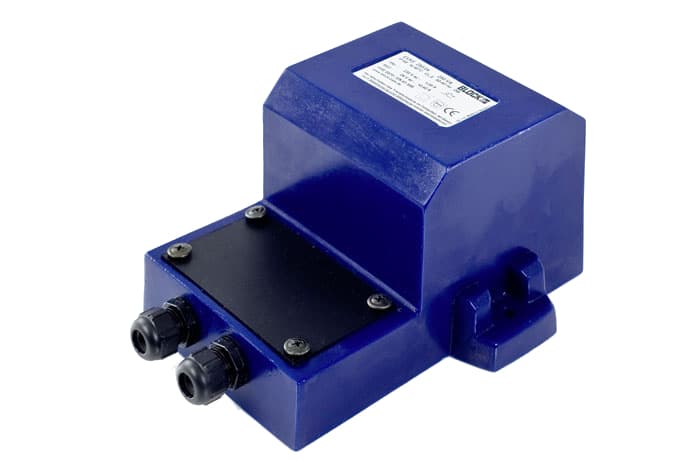

EVKE Series

Safety Isolating Transformer

PRI 230 Vac, SEC 24 Vac, 25 - 630 VA

Description

  • Plastic fittings on terminals

  • High degree of protection

  • Very good moisture protection and low noise thanks to resin encapsulation

  • Integrated short-circuit and overload protection

Prose

Safety Transformers

Safety transformers with galvanic isolation provide a reliable supply to power circuits with the safety measures “protective separation” or “protection through shutdown”. Double or reinforced isolation between the primary and secondary sides protects SELV and PELV circuits. Safety transformers provide safety extra low voltages below 50 Vac or 120 Vdc. BLOCK's standard range includes power ratings of between 0.5 VA and 2,500 VA.

  • Protection for SELV and PELV circuits
  • For safety extra low voltages below 50 Vac or 120 Vdc
  • Power output: 0.5 VA to 2,500 VA

Applications

Safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.

Specifications

Insulation

Class E

Degree of Protection

IP 68

Rated Output Voltage

24 Vac

Rated Power

25 - 630 VA

Rated Input Voltage

230 Vac

Maximum Ambient Temperature

40 °C

Standards

VDE 0570 Part 2-6, DIN EN 61558-2-6, EN 61558-2-6, IEC 61558-2-6

Specifications vary between configurations. Refer to the Configurations below for more information and links to the manufacturer's website. website](https://www.block.eu/en_EN/productversion/evke-2524/).
