Power Transformers

Power transformers with galvanic isolation can be used, e.g., to supply reliable low contact voltage to FELV circuits. In accordance with EN 61558, power transformers provide basic isolation between the primary and secondary sides at a minimum. This makes them ideal for creating new independent networks. BLOCK's standard range includes power ratings of between 0.5 VA and 2,500 VA.

• Basic isolation in accordance with EN 61558
• Power output: 0.5 VA to 2,500 VA

Safety Transformers

Safety transformers with galvanic isolation provide a reliable supply to power circuits with the safety measures “protective separation” or “protection through shutdown”. Double or reinforced isolation between the primary and secondary sides protects SELV and PELV circuits. Safety transformers provide safety extra low voltages below 50 Vac or 120 Vdc. BLOCK's standard range includes power ratings of between 0.5 VA and 2,500 VA.

• Protection for SELV and PELV circuits
• For safety extra low voltages below 50 Vac or 120 Vdc
• Power output: 0.5 VA to 2,500 VA

Isolating Transformers

Isolating transformers with galvanic isolation provide a reliable supply to circuits with the safety measures “protective separation”. The transformers provide double or reinforced isolation between the primary and secondary sides. Any requested network configuration is possible for the secondary side, whether this involves a monitored isolated system or grounded system with fuse elements. The output voltage for the isolating transformers can be between 50 Vac and 1,000 Vac or 120 Vdc and 1,415 Vdc. BLOCK's standard range includes power outputs of up to 1 MVA.

• Double or reinforced isolation between the primary and secondary sides
• Flexible structure for the secondary side network configuration
• Power output: 50 Vac to 1,000 Vac or 120 Vdc to 1,415 Vdc
• Power output: up to 1 MVA, higher power ratings upon request

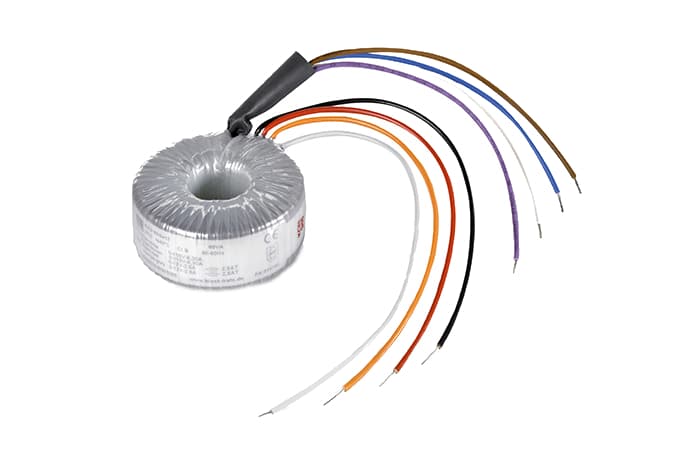

Toroidal transformers

Toroidal transformers only produce minimal leakage fields thanks to their shape. This means that the surrounding components remain free from interference. The transformers feature a very low design height and offer a crucial advantage as power, safety or isolating transformers in difficult installation conditions. With a space-saving wire connection, toroidal transformers can be soldered directly onto a PCB. BLOCK's standard range includes power outputs of between 0.35 VA and 3,000 VA.

• As safety or isolating transformer
• Very low design height
• Space-saving usage
• Power output: 0.35 VA to 3,000 VA

Applications

As a safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage. As a mains transformer for adjustment of the voltage and simple electrical isolation. As an isolating transformer for the safe electrical isolation of the input and output sides. The transformer may be used to set up protective separation as a protective measure in accordance with VDE 0100.
