Product Description

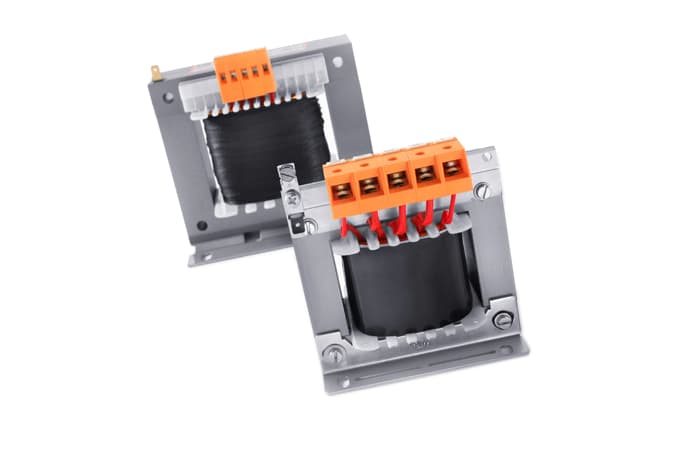

VT-EN Series
AutotransformerRobust metal fixing rail, PRI 110/125/230/240 Vac, SEC 110/125/230/240 Vac, 150 - 3,000 VA
VT-EN Series
AutotransformerRobust metal fixing rail, PRI 110/125/230/240 Vac, SEC 110/125/230/240 Vac, 150 - 3,000 VA
Description
- Very high efficiency
- Low weight and small size (compared to isolating transformers)
- Very good moisture protection and low noise thanks to BLOCK IMPEX vacuum impregnation
- Contact protected screw connection terminals complying with UVV BGV A3
- Simple mounting thanks to robust metal fixing rail with oval slots
Prose
Autotransformers
Autotransformers are the efficient and ideal solution for minor voltage adjustments. Compact designs can be provided depending on the voltage difference. Autotransformers feature lower losses compared with isolating transformers with the same power rating. The transformers without galvanic isolation also feature inverse operation. BLOCK's standard range features power outputs of between 150 VA and 250,000 VA
- Efficient solution for minor voltage adjustments
- Inverse operation possible
- Power output: 250 VA to 250,000 VA
Applications
- Autotransformer for adjustment of the voltage on the input and output sides with no requirement for electrical isolation.
Specifications
- Rated Power
150 - 3,000 VA
- Maximum Ambient Temperature
40 °C
- Insulation
Class B or E
- Degree of Protection
IP 00
- Rated Output Voltage
110/125/230/240 Vac
- Rated Input Voltage
110/125/230/240 Vac
- Standards
VDE 0570 Teil 2-13, DIN EN 61558-2-13, EN 61558-2-13, IEC 61558-2-13, UL 5085-1/-2, CSA 22.2 No.66
- Approvals
UL 5085-1/-2, CSA 22.2 No.66
Specifications vary between configurations. Refer to the Configurations below for more information and links to the manufacturer's website.
