Coel Motori

LimiteX Rotary

Explosion Proof Rotary Limit Switch

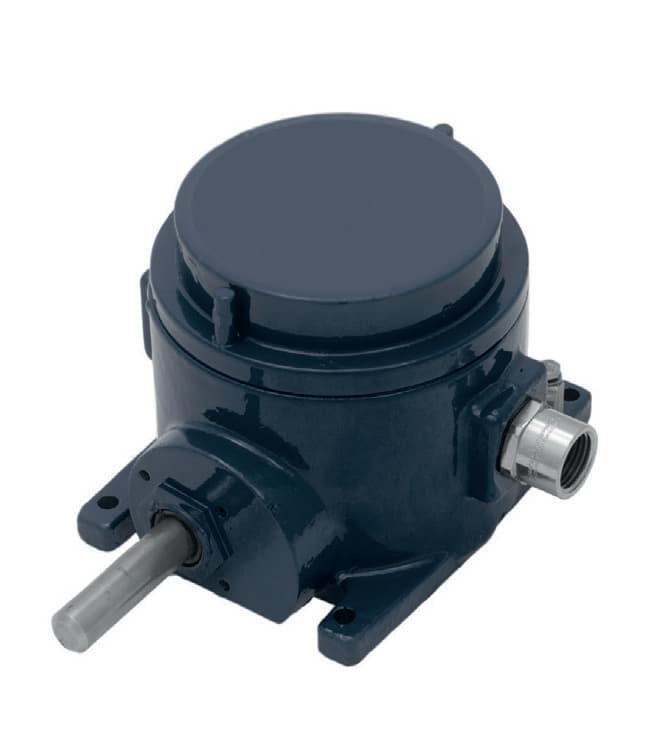

A robust and dependable explosion-proof ATEX rotary limit switch designed for precise control of industrial machinery operating in potentially explosive environments. With its rugged and reliable construction, Limitex ensures safe and efficient movement control in challenging settings. Cast iron construction, rugged and reliable for control of movement in industrial hazardous location machinery applications.

  • Cams can be precisely adjusted using screws, ensuring accurate positioning.
  • Equipped with positive opening NC contacts, the switches are suitable for safety functions.
  • The switches have a mechanical life of 1 million operations, guaranteeing durability.
  • With an IP66 protection degree, the switches offer reliable protection against water and dust.
  • Operating reliably within a wide ambient temperature range of -40°C to +60°C.
  • The external enclosure is constructed from G20 cast iron, and the transmission and gear driving shafts are made of stainless steel.
  • Self-lubricating technopolymer gears and driving bushes contribute to smooth operation.
  • All materials and components used are wear-resistant, ensuring longevity.

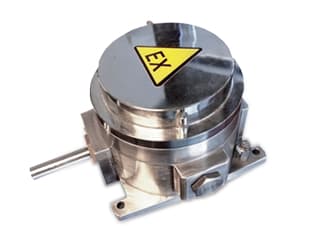

  • A full body stainless steel version is available as an alternative option.


The Limitex rotary limit switch is specially designed for controlling the precise movement of industrial machinery operating in potentially explosive areas. In these environments, an explosive atmosphere can consist of a mixture of air and combustible gases, vapors, fumes, or powders that can quickly propagate combustion (resulting in an explosion) when ignited at atmospheric pressure. The Limitex limit switch serves as an auxiliary controller for electrical motors, seamlessly interfacing with power interfaces such as contactors or PLCs. With its reliable performance and rugged construction, Limitex ensures safe and efficient operation in challenging industrial settings.


  • A wide range of revolution ratios ranging from 1:15 to 1:499, including standard ratios of 1:20, 1:25, 1:50, 1:75, and 1:100. Custom non-standard revolution ratios are also available upon request.
  • The transmission of movement from the input shaft to the output shaft is accomplished through a combination of a worm gear, a helical toothed gear, and one or more pairs of straight toothed gears.
  • Achieving the desired revolution ratios involves utilizing various combinations of gear wheels between the input shaft and the output shaft, which is directly connected to the cams.


  • The limit switches feature a durable external enclosure constructed from G20 cast iron, providing excellent protection against water and dust.
  • To prevent oxidation and wear, the transmission and gear driving shafts are meticulously crafted from AISI 316 stainless steel.
  • The data nameplate is also skillfully crafted using stainless steel material.
  • The gear wheels and driving bushes are made from a self-lubricating techno-polymer material, meticulously selected to minimize wear and maintain accurate couplings over time.
  • Sintered bronze bushes are seamlessly integrated into the base of the limit switch, optimizing shaft rotation and preventing any rubbing with plastic materials.


  • Limitex offers the option to equip cam sets with 2, 3, or 4 switches, allowing for flexible customization.
  • The limit switch is available with direct control switches, enabling direct operation on the transmission.
  • Equip with snap action switches featuring 1NO+1NC change-over contacts.
  • With fixing feet included, the limit switch can be conveniently equipped with a flange for direct coupling to the transmission.
  • Special output shaft dimensions can be accommodated upon request, providing tailored solutions.
  • A wide range of revolution ratios, ranging from 1:15 to 1:1578, achieved through the combination of various secondary output stages.
  • Precise cam settings can be achieved for each cam, thanks to the cam adjusting screws, ensuring accuracy and fine-tuning capabilities.


Maximum rotation speed

800 rev./min.

Cable entry

Nr. 1 M20x1,5 - Nr. 1 M25x1,5 - Nr. 1 ½ NPT (cable glands not supplied)

Maximum power supply

300 Vac

Maximum current intensity

3 A

Maximum dissipated power

2 Watt

Rated frequency

50 / 60 Hz



I M2 Ex d I Mb (ATEX) Ex d I Mb (IECEx)


Zone 1 and 2: II2G Ex d IIB T6 Gb or Ex d IIC T6 Gb (ATEX) Ex d IIB T6 or Ex d IIC T6 Gb (IECEx)


Zone 21 and 22: II2D Ex tb IIIC T85°C Db IP66 (ATEX) Ex tb IIC T85°C Db IP66 (IECEx)

Gas & Dust

II2GD Ex d IIB or IIC T6 Gb Ex tb IIC T85°C Db IP66


Need more information?We can help.
