Product Description

Coel Motori

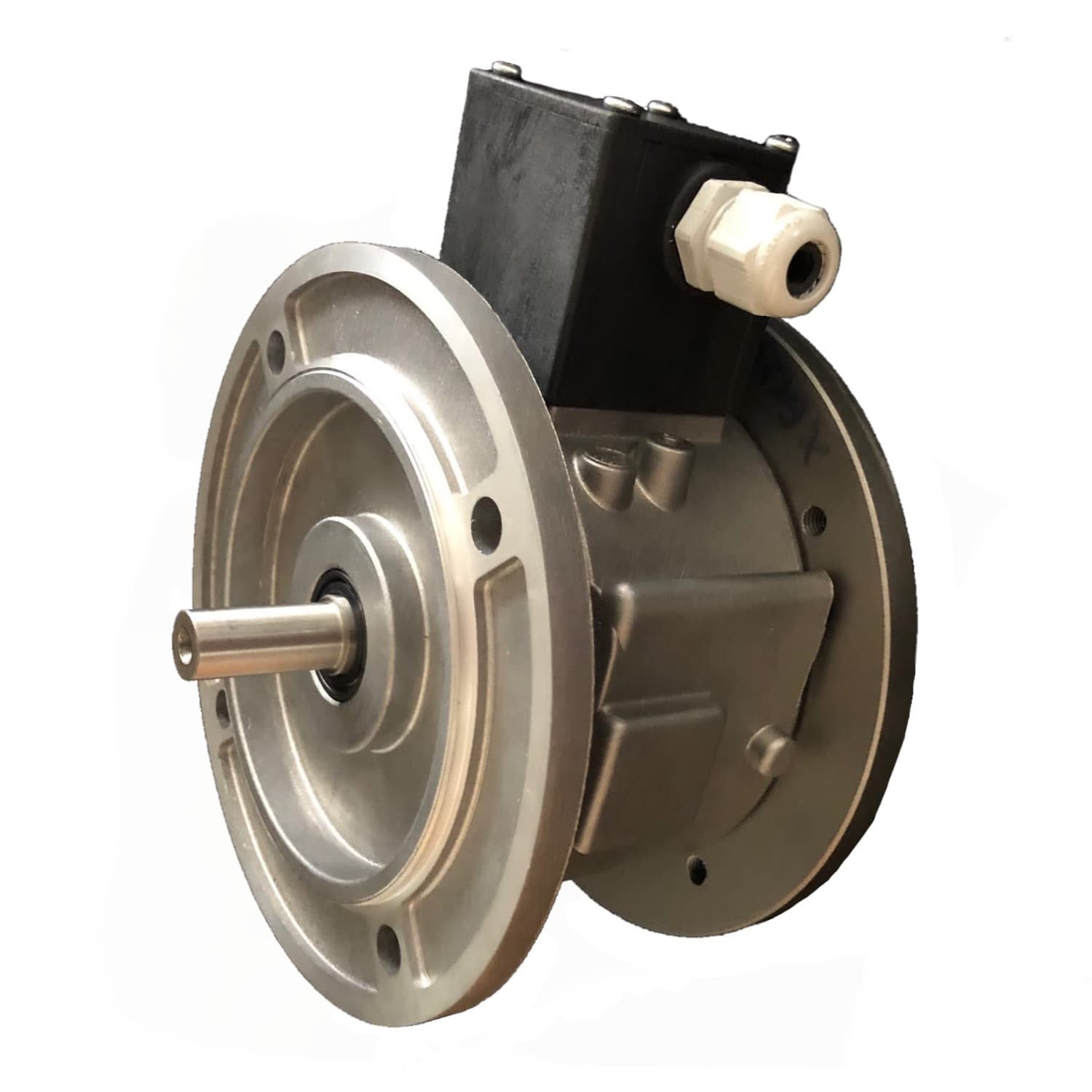

VIS Standard Series

Modular Friction Disc Brake

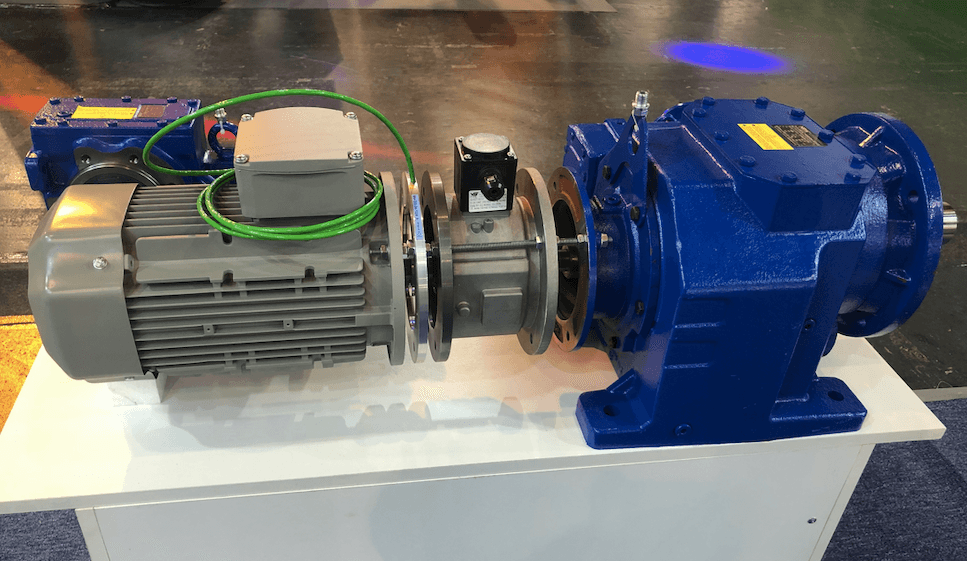

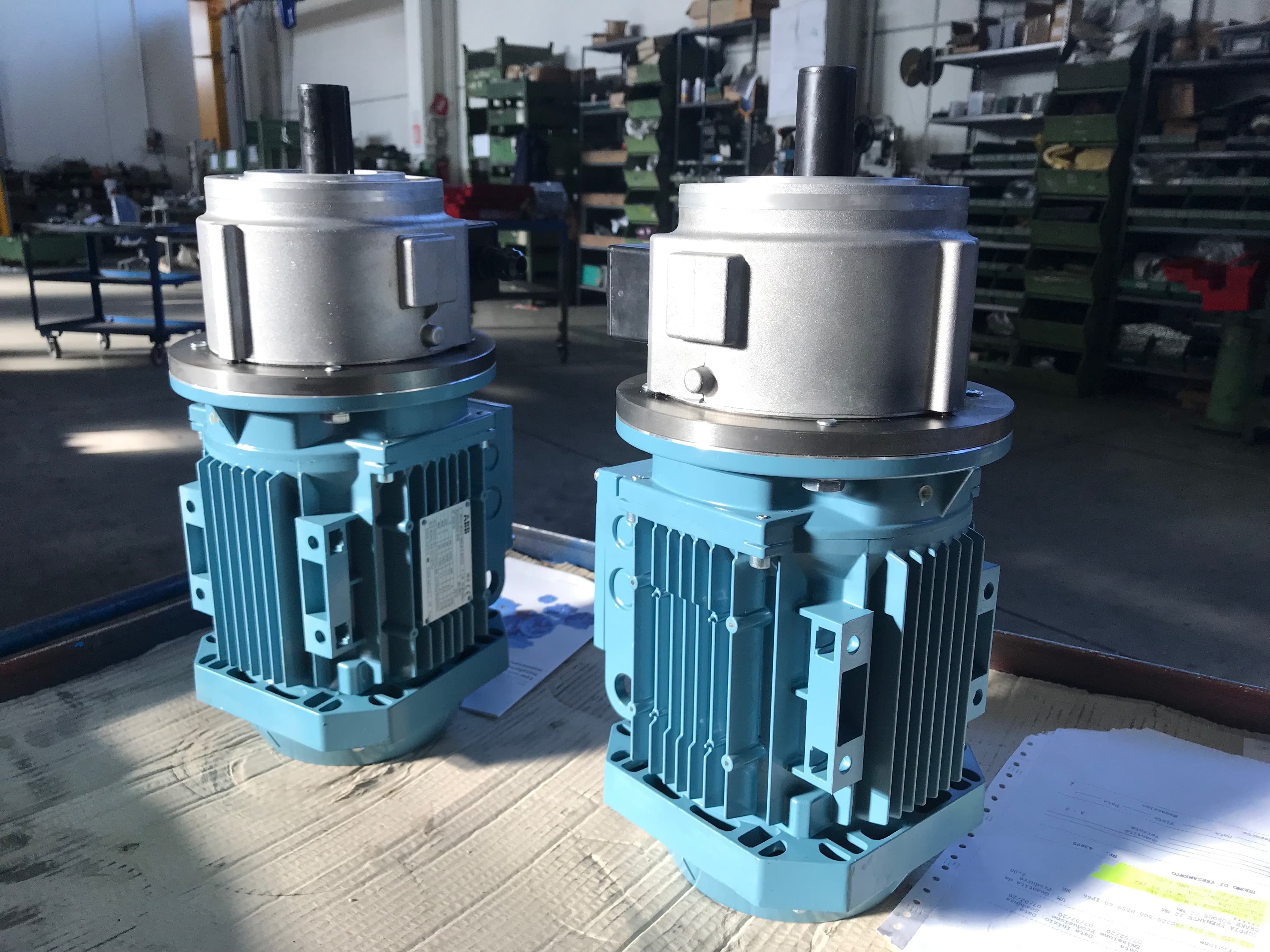

The VIS Standard series brakes are modular friction disc brakes specifically designed for applications that require brake motors. One of their key advantages is their independent certified unit, which can be mounted directly onto an electric motor without any mechanical or electrical modifications, making installation incredibly easy.

The brakes are available in both IEC (metric) flange face versions (B5 or B14) and NEMA double C-face standards. They are known for their ease of installation, cost-effectiveness, and reliability.

The brake models offer a wide range of braking torque options, ranging from 3 to 16,000 Nm, and also provide various add-on options to cater to different requirements.

  • NEMA models are offered in frame sizes 56 to 404, providing a wide range of options.
  • IEC (metric) models are available in frame sizes 63 to 315, ensuring compatibility with different motor configurations.
  • The brakes support various voltage inputs, including the standard range of 200-500VAC, as well as options for 115V and 575V.
  • Certified for Class I, Division 1, Groups C and D; Class II, Division 1, Groups E, F, and G; and Class III


The VIS Standard line sets a new benchmark in the brake motors industry. The line meet the demands for flexibility and efficient lead times in the modern market. It allows for the use of a common B5 motor from stock, providing enhanced performance beyond expectations. This VIS Standard line incorporates a range of remarkable features, guaranteeing superior performance in any application.


  • Dust and water protection: The VIS Standard features a fully closed construction, providing excellent protection against dust and water.
  • Aluminum frame for IEC 71-90 and cast iron frame for IEC 100 to 225 and NEMA: Coel has chosen high-quality materials for different frame sizes, ensuring a combination of lightweight design and exceptional durability.
  • Thermally treated shafts: The VIS Standard includes thermally treated shafts as a standard feature, offering high resistance for demanding applications.
  • All-in-one power supply rectifier: With Coel's innovative power supply rectifier integrated into the terminal box, the VIS Standard can operate with input voltages ranging from 200 to 500 VAC, simplifying stocking and enabling quick delivery.
  • Extremely low noise operation: The VIS Standard ensures low noise operation, meeting the increasing demand for quiet brake performance across various applications.
  • Extra high durability of brake disc: Through extensive research, Coel has developed a new friction material that provides exceptional durability, low wear, and consistent braking performance in both cold and warm conditions. This results in longer brake life and reliable operation.
