Product Description

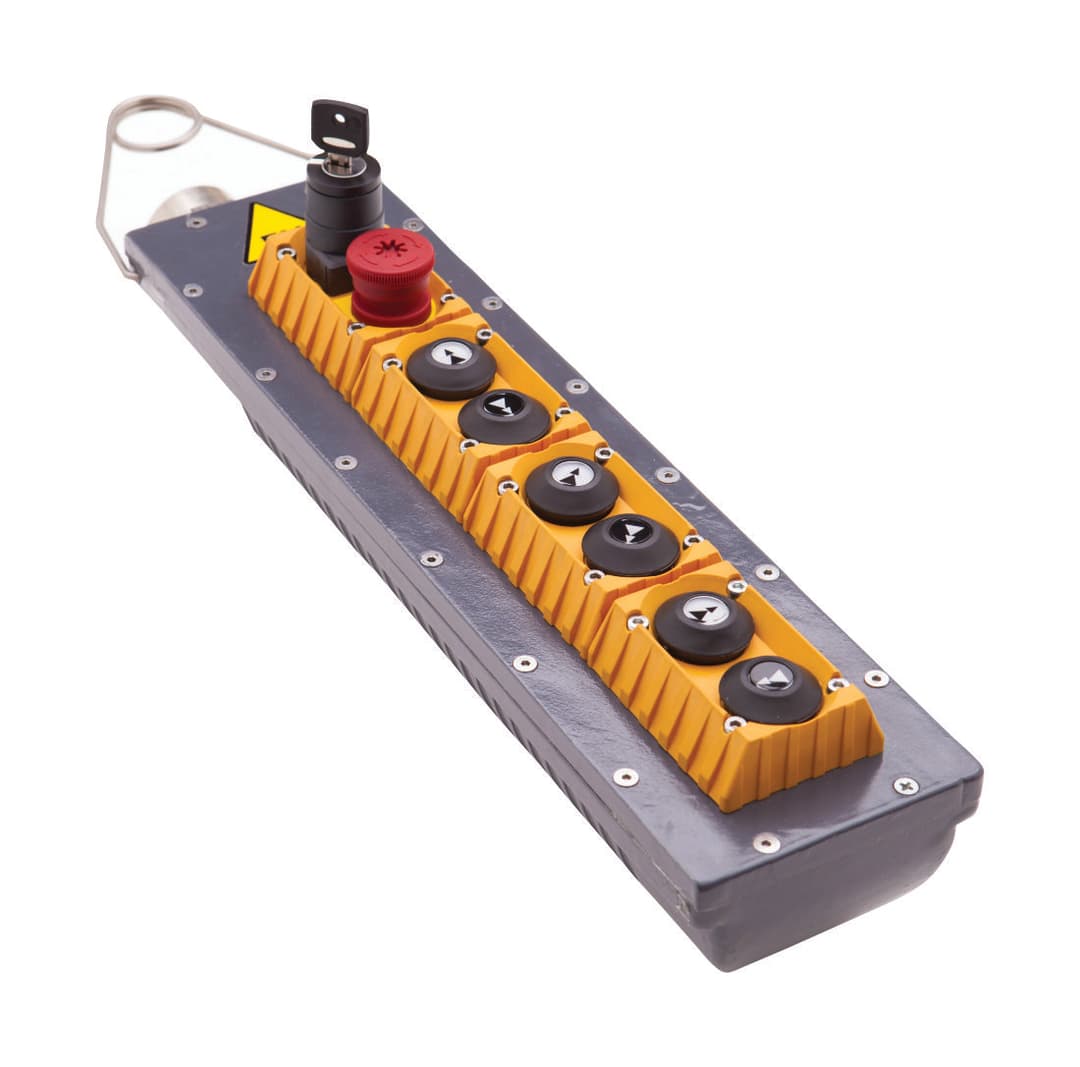

The X Touch pendant station is designed for auxiliary control of industrial hoist, crane, and machine tool controls in hazardous location applications. Its body is constructed with cast aluminum, ensuring durability and reliability in rugged environments. It is available in various configurations, ranging from 2 to 12 holes, with a wide selection of operators.


The X Touch series push-button stations for auxiliary controls are the result of Coel's extensive experience in manufacturing electromechanical components. The design of these stations prioritizes both ease of use and technical aspects, ensuring their suitability for heavy-duty applications. All materials in contact with the environment are resistant to atmospheric agents, oils, temperature changes, and shock.

The X Touch stations provide complete protection against dust and water, conforming to IP65 standards. The optimized internal space facilitates easy and quick connections. Bridge connections are available upon request to minimize cabling time.

These push-button stations are offered in five different sizes, ranging from 4 to 16 buttons, and can accommodate various controls and switches. The enclosures are made of aluminum, while the switches feature self-cleaning sliding contacts made of silver alloy. Additionally, the enclosures can house switches, thermal protectors, and resistances for anti-condensation heating.

The X Touch pendant stations are designed for industrial areas, specifically for hazardous locations. They meet ATEX and IECEx requirements for zones 1, 2, 21, and 22, as well as cETLus standards for Class I, Class II, and Class III, Division 1.


  • The enclosure is constructed with aluminum as the standard material choice.
  • The operating temperature range is -20°C to +60°C for ATEX-IECEx certifications and -20°C to +40°C for cETLus certification.
  • Each type of brake includes double step buttons for enhanced control.
  • The enclosure is coated with epoxy paint by default.
  • It comes equipped with a Selector Switch (Key type) offering options for Disabled, Enabled, and Start functions.


  • Enclosure in steel C40 or AISI 316 (only for TA type).
  • Anti-condensation heater.


Maximum power supply

250Vdc or 240Vac

Maximum current

1.1 A at 250 Vdc or 3A at 240Vac

Rated frequency

50/60 Hz



II2GD (Gas&Dust)

Ex db IIC T6 Gb

Ex tb IIIC T85°C Db

US (cETLus)

Class I, Division 1, Group A,B,C & D, T6

Class II, Division 1, Group E, F & G, T6

Class III, Division 1

Canada (cETLus)

Class I, Division 1, Group B,C & D, T6

Class II, Division 1, Group E, F & G, T6

Class III, Division 1

For detailed specifications, refer to the Product Catalogue.
