Product Description

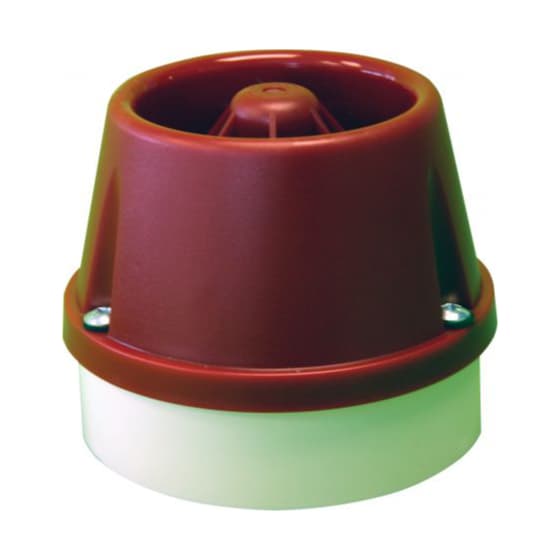

IAS-E Series

Electronic Sounder

114dB Multi-tone Sounder


  • 117mm High x 146 Diameter
  • IP65 (Horn must not be mounted pointing upwards)
  • 64 Tone combinations
  • Maximum output 114dB(A)
  • Internal volume control
  • 12Vdc, 18-55Vdc, 15-40Vac, 115-230Vac/dc and 45-65Vac/55-95Vdc models
  • 2-wire connection with third-wire/fourth-wire for alternate tone selections
  • Standard White ABS base and Red horn, optional White or Black horns available.
  • Suitable for BESA box mounting
  • Side and Base entry

Available Horn Colours


This product complements Deegee's standard Series E Industrial range of products. The circuitry is securely fixed to the lens assembly, offering convenient access to the terminal block for wiring, a tone selector switch, and volume control. This arrangement simplifies the fitting of bases and wiring during installation and ensures the safe storage of electronics for phase 2 fitting.

The cap is fastened to the base using a custom gasket and secured by three screws. It provides a dedicated electronic sounder designed for general-purpose audible alarm applications, delivering a maximum sound output of 114dB(A) with an IP65 rating. The sounder features internal volume control, and users can select from 64 tone combinations using an internal DIP-switch array.

For ease of installation, a simple 2-wire connection energizes the sounder, with second-stage and third-stage tones available on third/fourth wires. This sounder accommodates a full range of supply voltages, including 10-30Vdc, 24Vac, 115-230Vac/dc, and 45-65Vac/55-95Vdc units (where "uc" can refer to ac or dc). Standard units come with a White ABS base, with Black or Red options available, and a Red horn, with Black or White options also available.
