Product Description

deegee

IPN/001 Series

LED Status Signal

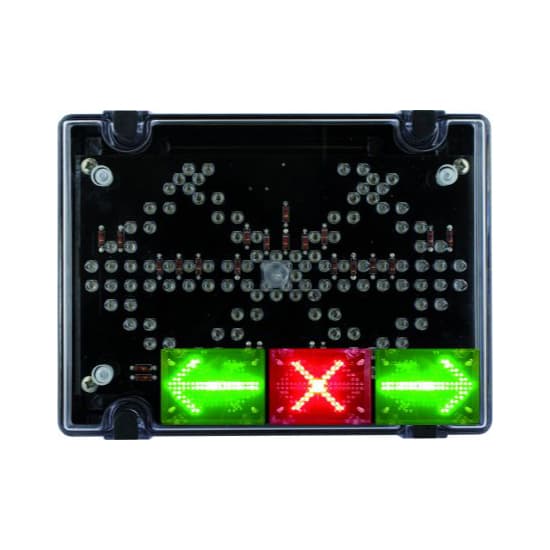

Static LED Cross & Arrows Inducator

Description

  • 200mm x 150mm x 80mm
  • IPN/LED/001
  • IP65
  • Direction Status Indicator
  • 24Vac/dc, 115Vac and 230Vac models
  • Can show any combination of green-arrow-left, green-arrow-right and red-cross
  • Function selection by applying power to relevant terminals
  • Can be rotated 90° to indicate up/down
  • Red & green LEDs with clear lens

LED Colours

Prose

Featuring the latest technology in Light Emitting Diodes (LEDs), this product utilizes a high-density LED matrix configuration, making it exceptionally well-suited for a wide range of applications, including Loading-Bay Signaling, Shutter Door Status, On-Site Traffic Management, Dockside Signaling, Factory Control, and more.

Available in standard 24Vdc, 115Vac, and 230Vac models, all units are housed within a durable IP65 UV-stabilized polycarbonate enclosure (200x150x80mm), providing robust protection against environmental elements. Function selection is achieved by applying power to the relevant terminals, and the unit offers a straightforward four-wire connection, simplifying integration with your system.

The standard unit can display a combination of green-arrow-left, green-arrow-right, and red-cross indicators. Should you require different colors, options are available in red, green, blue, or white, although it's important to note that both arrow indicators must be of the same color. Custom color selections are available.
