Product Description


IPN/002 Series

LED Status Signal

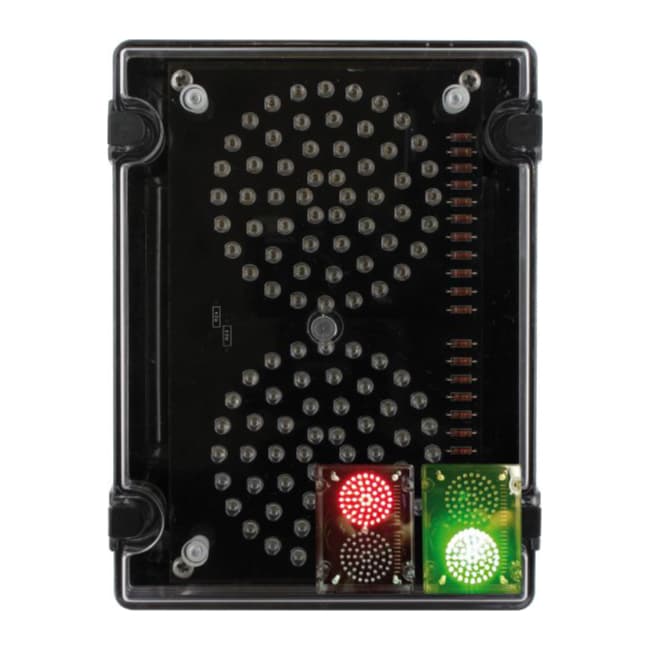

2-way LED Traffic Light


  • 200mm x 150mm x 80mm
  • IPN/LED/002
  • Stop / Go traffic light
  • Best-value warning signal to minimise the risk of accidents around a loading dock
  • Red and green lights provide immediate and unmistakable instruction to drivers and loading dock staff, reducing the risk of confusion and/or error
  • Establishes a clear line of communication between the driver and dock personnel
  • Function selection by applying power to relevant terminals
  • High-quality wide-angle LEDs for attention grabbing signalling, even when viewing off-axis.
  • Robust design means that a distinct signal is maintained even if individual LEDs fail.
  • 24Vac/dc, 115Vac and 230Vac models
  • Red & green LEDs with clear lens
  • IP65

LED Colours


Introducing Deegee's compact LED Stop/Go Traffic Light, an outstanding choice for a wide array of applications, including loading-bay signaling, shutter door status, on-site traffic management, dockside signaling, factory control, and more. This versatile solution ensures clear signaling for both your internal staff and external lorry drivers when one unit is mounted indoors and another outdoors. This setup enhances communication and, most importantly, bolsters overall safety.

Integration into your existing system is a breeze with a straightforward three-wire connection. Furthermore, the 24Vac/dc unit can be directly linked to your current dock leveler or door control system, simplifying the installation process even further.

Benefit from the long-lasting LEDs integrated into this traffic light, which not only minimizes maintenance requirements but also results in reduced energy costs due to their low power consumption. These combined advantages result in significantly reduced operational costs compared to traditional lamp-based units.

For added convenience, you have the option to set the units to one of five preset intensity levels (100%, 50%, 25%, 10%, or 5%) using internal jumper links. Alternatively, the unit can be configured to run at 100% with a single lower preset intensity level (100%, 50%, 25%, 10%, or 5%), which can be easily selected through an external control signal.

Choose from a range of standard models, including 24Vac/dc, 115Vac, and 230Vac, all enclosed within a robust IP65 UV-stabilized polycarbonate housing measuring 200x150x80mm to ensure protection against various environmental elements. Furthermore, the 24Vac/dc unit offers a convenient direct connection to your existing dock leveler or door control system.

The standard unit comes equipped with one red and one green LED array paired with a clear lens. To suit your specific requirements, other colors are available thorugh custom order, including red, green, blue, or white.
