Product Description

deegee

IPN/003 Series

LED Status Signal

Pulsed LED "FIRE" Signal

Description

  • 200mm x 150mm x 80mm
  • IPN/LED/003
  • IP65
  • Clear and unambiguous signal
  • 24Vac/dc, 115Vac and 230Vac models
  • User selectable flashing or static operation
  • Red LEDs with red lens

LED Colour

Prose

Utilizing cutting-edge light emitting diodes (LEDs) configured into a high-density matrix, Deegee's technology provides a clear and unambiguous warning signal that ensures heightened safety awareness.

Internal jumper links offer versatile configuration options for the warning signal. You can set the units to either Pulsed (Flashing signal) or Static (Continuous signal) modes of operation. Additionally, the intensity level can be adjusted to either 100% or 25% to precisely suit individual application requirements.

We offer a range of standard models, including 24Vdc, 115Vac, and 230Vac, all housed within robust IP65 UV-stabilized polycarbonate enclosures measuring 200x150x80mm. These enclosures provide excellent protection against various environmental elements, ensuring durability and reliability.

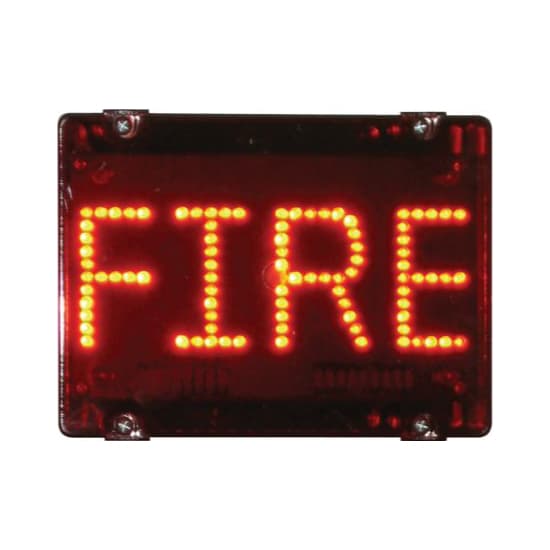

Deegee's standard unit prominently displays the word “FIRE” in red, accompanied by a complementary red lens. For customized solutions, you have the option to choose from a selection of colors, including amber, green, blue, or white, available through special order.
